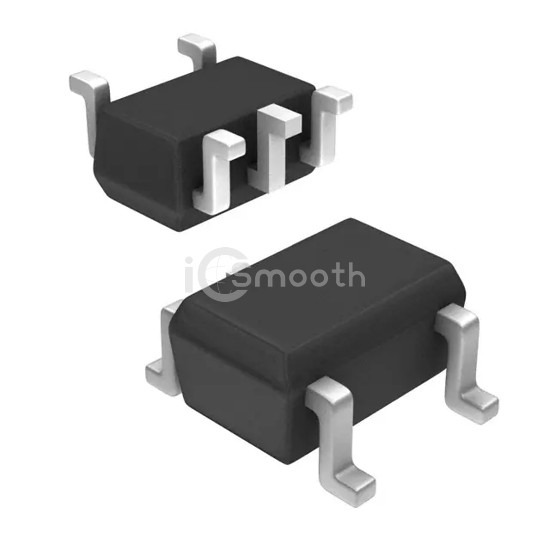

Name: 74LVC1G14QSE-7
Brand: Diodes Incorporated
SKU: 74LVC1G14QSE-7
Price: 0.20 USD
Availability: InStock

REF: 74LVC1G14QSE-7 Diodes Incorporated

74LVC1G14QSE-7

Diodes Incorporated

IC INVERT SCHMITT 1CH 1IN SOT353

74LVC1G14QSE-7 is a Logic - Gates and Inverters manufactured by Diodes Incorporated. IC INVERT SCHMITT 1CH 1IN SOT353. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 1.65V ~ 5.5V, package / case 5-TSSOP, SC-70-5, SOT-353.

Datasheet Request a Quote

In Stock: 4,841

Tiered Pricing USD

1+ $0.2000 —

10+ $0.1340 -33%

25+ $0.1184 -41%

100+ $0.1008 -50%

250+ $0.0924 -54%

500+ $0.0874 -56%

1,000+ $0.0832 -58% BEST

Specifications

15 parameters

Product Status	Active
Logic Type	Inverter
Number of Circuits	1
Number of Inputs	1
Features	Schmitt Trigger
Voltage - Supply	1.65V ~ 5.5V
Current - Quiescent (Max)	4 µA
Current - Output High, Low	32mA, 32mA

Logic Level - Low	0.7V ~ 0.8V
Logic Level - High	0.95V ~ 3.4V
Max Propagation Delay @ V, Max CL	6.5ns @ 5V, 50pF
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	SOT-353
Package / Case	5-TSSOP, SC-70-5, SOT-353
