Name: 74LVC1G14FX4-7
Brand: Diodes Incorporated
SKU: 74LVC1G14FX4-7
Price: 0.11 USD
Availability: InStock

REF: 74LVC1G14FX4-7 Diodes Incorporated

74LVC1G14FX4-7

Diodes Incorporated

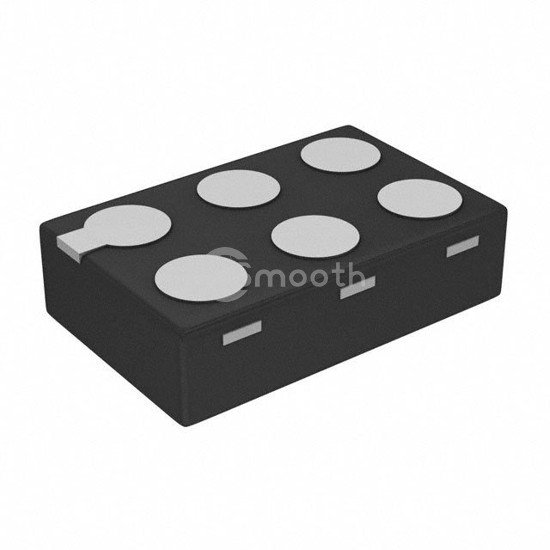

IC INVERTER 1CH 1-INP DFN1409-6

74LVC1G14FX4-7 is a Logic - Gates and Inverters manufactured by Diodes Incorporated. IC INVERTER 1CH 1-INP DFN1409-6. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 1.65V ~ 5.5V, package / case 6-XFDFN.

Datasheet Request a Quote

In Stock: 5,000

Tiered Pricing USD

5,000+ $0.1052 —

10,000+ $0.1024 -3%

15,000+ $0.1009 -4%

25,000+ $0.0994 -6%

35,000+ $0.0984 -6%

50,000+ $0.0976 -7% BEST

Specifications

15 parameters

Product Status	Active
Logic Type	Inverter
Number of Circuits	1
Number of Inputs	1
Features	Schmitt Trigger
Voltage - Supply	1.65V ~ 5.5V
Current - Quiescent (Max)	200 µA
Current - Output High, Low	32mA, 32mA

Logic Level - Low	0.3V ~ 1.45V
Logic Level - High	1.2V ~ 3.33V
Max Propagation Delay @ V, Max CL	6.5ns @ 5V, 50pF
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	X2-DFN1409-6
Package / Case	6-XFDFN
