74LVC1G08FW4-7

In Stock: 5,332

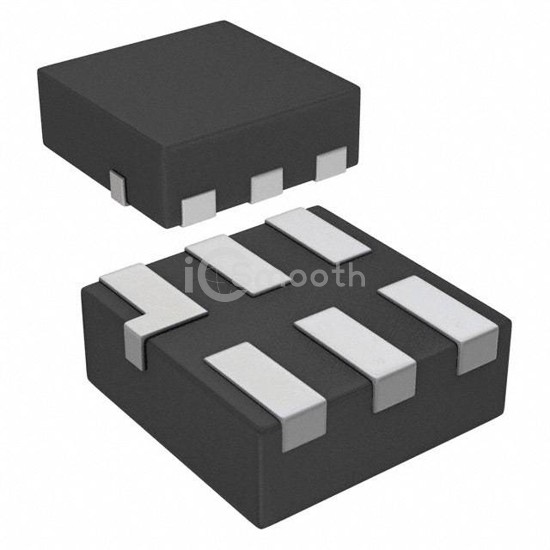

74LVC1G08FW4-7 - Diodes Incorporated - Logic - Gates and Inverters
REF: 74LVC1G08FW4-7 Diodes Incorporated
74LVC1G08FW4-7

Diodes Incorporated

IC GATE AND 1CH 2-INP DFN1010-6

74LVC1G08FW4-7 is a Logic - Gates and Inverters manufactured by Diodes Incorporated. IC GATE AND 1CH 2-INP DFN1010-6. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 1.65V ~ 5.5V, package / case 6-XFDFN.

Datasheet Request a Quote

In Stock: 5,332

Tiered Pricing USD
1+ $0.2600 —
10+ $0.1780 -32%
25+ $0.1572 -40%
100+ $0.1348 -48%
250+ $0.1240 -52%
500+ $0.1176 -55%
1,000+ $0.1123 -57%
2,500+ $0.1097 -58% BEST

Specifications

15 parameters
Product StatusActive
Logic TypeAND Gate
Number of Circuits1
Number of Inputs2
Features-
Voltage - Supply1.65V ~ 5.5V
Current - Quiescent (Max)200 µA
Current - Output High, Low32mA, 32mA
Logic Level - Low0.7V ~ 0.8V
Logic Level - High1.7V ~ 2V
Max Propagation Delay @ V, Max CL5.5ns @ 5V, 50pF
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Supplier Device PackageX2-DFN1010-6
Package / Case6-XFDFN
