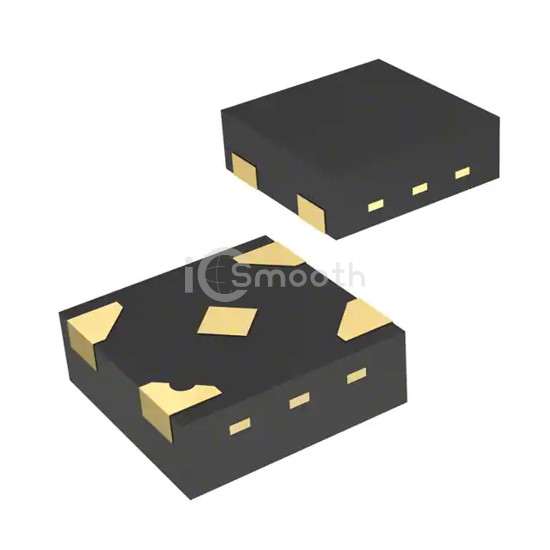

Name: 74LVC1G08FS3-7
Brand: Diodes Incorporated
SKU: 74LVC1G08FS3-7
Price: 0.27 USD
Availability: InStock

REF: 74LVC1G08FS3-7 Diodes Incorporated

74LVC1G08FS3-7

Diodes Incorporated

IC GATE AND 1CH 2-INP 4X2DFN

74LVC1G08FS3-7 is a Logic - Gates and Inverters manufactured by Diodes Incorporated. IC GATE AND 1CH 2-INP 4X2DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 1.65V ~ 5.5V, package / case 4-XFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 4,166

Tiered Pricing USD

1+ $0.2700 —

10+ $0.1880 -30%

25+ $0.1664 -38%

100+ $0.1428 -47%

250+ $0.1315 -51%

500+ $0.1247 -54%

1,000+ $0.1191 -56%

2,500+ $0.1167 -57% BEST

Specifications

15 parameters

Product Status	Active
Logic Type	AND Gate
Number of Circuits	1
Number of Inputs	2
Features	-
Voltage - Supply	1.65V ~ 5.5V
Current - Quiescent (Max)	200 µA
Current - Output High, Low	32mA, 32mA

Logic Level - Low	0.7V ~ 0.8V
Logic Level - High	1.7V ~ 2V
Max Propagation Delay @ V, Max CL	5.5ns @ 5V, 50pF
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	X2-DFN0808-4
Package / Case	4-XFDFN Exposed Pad
