74LVC1G02Z-7

In Stock: 3,655

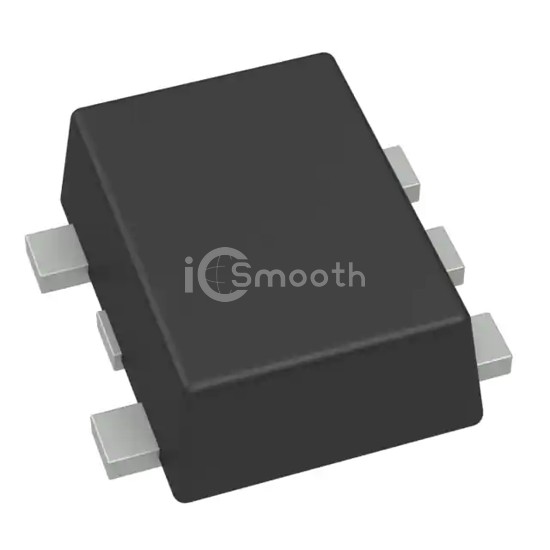

74LVC1G02Z-7 - Diodes Incorporated - Logic - Gates and Inverters
REF: 74LVC1G02Z-7 Diodes Incorporated
74LVC1G02Z-7

Diodes Incorporated

IC GATE NOR 1CH 2-INP SOT553

74LVC1G02Z-7 is a Logic - Gates and Inverters manufactured by Diodes Incorporated. IC GATE NOR 1CH 2-INP SOT553. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case SOT-553.

Datasheet Request a Quote

In Stock: 3,655

Tiered Pricing USD
1+ $0.1800 —
10+ $0.1190 -34%
25+ $0.1052 -42%
100+ $0.0893 -50%
250+ $0.0818 -55%
500+ $0.0772 -57%
1,000+ $0.0735 -59% BEST

Specifications

15 parameters
Product StatusActive
Logic TypeNOR Gate
Number of Circuits1
Number of Inputs2
Features-
Voltage - Supply1.65V ~ 5.5V
Current - Quiescent (Max)200 µA
Current - Output High, Low32mA, 32mA
Logic Level - Low0.7V ~ 0.8V
Logic Level - High1.7V ~ 2V
Max Propagation Delay @ V, Max CL1.7ns @ 5V, 50pF
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device PackageSOT-553
Package / CaseSOT-553
