Name: 74LVC1G02FZ4-7
Brand: Diodes Incorporated
SKU: 74LVC1G02FZ4-7
Price: 0.08 USD
Availability: InStock

REF: 74LVC1G02FZ4-7 Diodes Incorporated

74LVC1G02FZ4-7

Diodes Incorporated

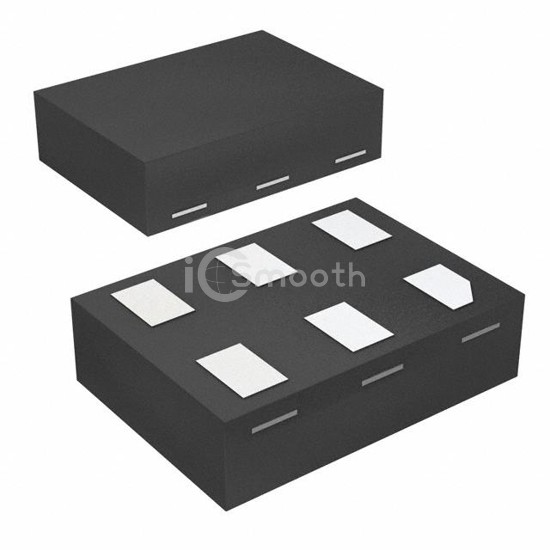

IC GATE NOR 1CH 2-INP DFN1410-6

74LVC1G02FZ4-7 is a Logic - Gates and Inverters manufactured by Diodes Incorporated. IC GATE NOR 1CH 2-INP DFN1410-6. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 6-XFDFN.

Datasheet Request a Quote

In Stock: 3,410

Tiered Pricing USD

5,000+ $0.0763 —

10,000+ $0.0742 -3%

15,000+ $0.0731 -4%

25,000+ $0.0719 -6%

35,000+ $0.0712 -7%

50,000+ $0.0705 -8%

125,000+ $0.0690 -10% BEST

Specifications

15 parameters

Product Status	Active
Logic Type	NOR Gate
Number of Circuits	1
Number of Inputs	2
Features	-
Voltage - Supply	1.65V ~ 5.5V
Current - Quiescent (Max)	200 µA
Current - Output High, Low	32mA, 32mA

Logic Level - Low	0.7V ~ 0.8V
Logic Level - High	1.7V ~ 2V
Max Propagation Delay @ V, Max CL	1.7ns @ 5V, 50pF
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Supplier Device Package	X2-DFN1410-6
Package / Case	6-XFDFN
