74AUP1G08SE-7

In Stock: 6,435

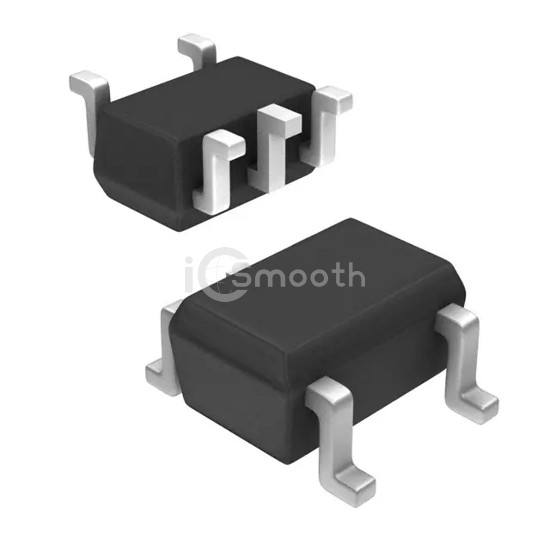

74AUP1G08SE-7 - Diodes Incorporated - Logic - Gates and Inverters
REF: 74AUP1G08SE-7 Diodes Incorporated
74AUP1G08SE-7

Diodes Incorporated

IC GATE AND 1CH 2-INP SOT353

74AUP1G08SE-7 is a Logic - Gates and Inverters manufactured by Diodes Incorporated. IC GATE AND 1CH 2-INP SOT353. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 0.8V ~ 3.6V, package / case 5-TSSOP, SC-70-5, SOT-353.

Datasheet Request a Quote

In Stock: 6,435

Specifications

15 parameters
Product StatusActive
Logic TypeAND Gate
Number of Circuits1
Number of Inputs2
Features-
Voltage - Supply0.8V ~ 3.6V
Current - Quiescent (Max)500 nA
Current - Output High, Low4mA, 4mA
Logic Level - Low0.7V ~ 0.9V
Logic Level - High1.6V ~ 2V
Max Propagation Delay @ V, Max CL6.2ns @ 3.3V, 30pF
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Supplier Device PackageSOT-353
Package / Case5-TSSOP, SC-70-5, SOT-353
