Name: 74AHC1G09SE-7
Brand: Diodes Incorporated
SKU: 74AHC1G09SE-7
Price: 0.23 USD
Availability: InStock

REF: 74AHC1G09SE-7 Diodes Incorporated

74AHC1G09SE-7

Diodes Incorporated

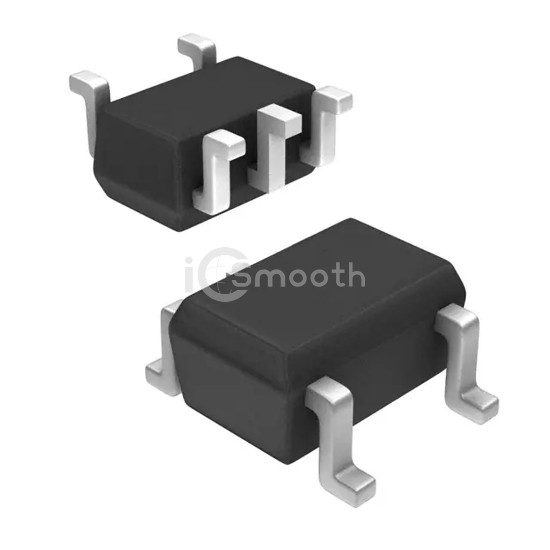

IC GATE AND OD 1CH 2-INP SOT353

74AHC1G09SE-7 is a Logic - Gates and Inverters manufactured by Diodes Incorporated. IC GATE AND OD 1CH 2-INP SOT353. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2V ~ 5.5V, package / case 5-TSSOP, SC-70-5, SOT-353.

Datasheet Request a Quote

In Stock: 4,720

Tiered Pricing USD

1+ $0.2300 —

10+ $0.1550 -33%

25+ $0.1364 -41%

100+ $0.1167 -49%

250+ $0.1072 -53%

500+ $0.1015 -56%

1,000+ $0.0968 -58% BEST

Specifications

15 parameters

Product Status	Active
Logic Type	AND Gate
Number of Circuits	1
Number of Inputs	2
Features	Open Drain
Voltage - Supply	2V ~ 5.5V
Current - Quiescent (Max)	1 µA
Current - Output High, Low	-, 4mA

Logic Level - Low	0.5V ~ 1.65V
Logic Level - High	1.5V ~ 3.85V
Max Propagation Delay @ V, Max CL	7.5ns @ 5V, 50pF
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Supplier Device Package	SOT-353
Package / Case	5-TSSOP, SC-70-5, SOT-353
