3.0SMCJ5.0AQ-13

In Stock: 9,626

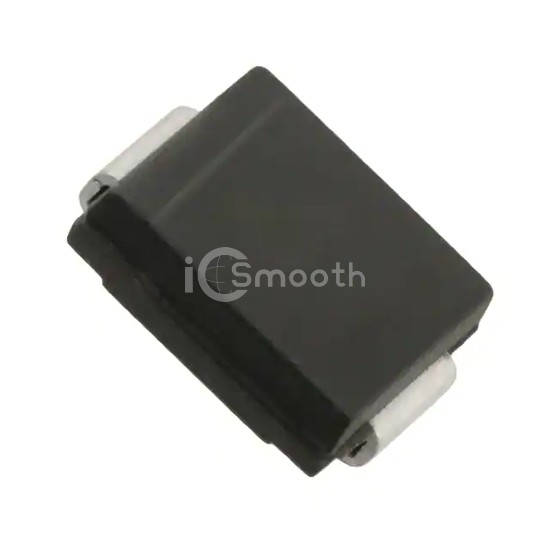

3.0SMCJ5.0AQ-13 - Diodes Incorporated - TVS - Diodes
REF: 3.0SMCJ5.0AQ-13 Diodes Incorporated
3.0SMCJ5.0AQ-13

Diodes Incorporated

TVS DIODE 5VWM 9.2VC SMC

3.0SMCJ5.0AQ-13 is a TVS - Diodes manufactured by Diodes Incorporated. TVS DIODE 5VWM 9.2VC SMC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case DO-214AB, SMC.

Datasheet Request a Quote

In Stock: 9,626

Tiered Pricing USD
1+ $1.2600 —
10+ $0.7930 -37%
100+ $0.5233 -58%
500+ $0.4073 -68%
1,000+ $0.3699 -71% BEST

Specifications

16 parameters
Product StatusActive
TypeZener
Unidirectional Channels1
Bidirectional Channels-
Voltage - Reverse Standoff (Typ)5V
Voltage - Breakdown (Min)6.4V
Voltage - Clamping (Max) @ Ipp9.2V
Current - Peak Pulse (10/1000µs)326.1A
Power - Peak Pulse3000W (3kW)
Power Line ProtectionNo
ApplicationsGeneral Purpose
Capacitance @ Frequency8000pF @ 1MHz
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Package / CaseDO-214AB, SMC
Supplier Device PackageSMC
