Name: DL2000UB-10V
Brand: Danisense A/S
SKU: DL2000UB-10V
Price: 5305.01 USD
Availability: InStock

REF: DL2000UB-10V Danisense A/S

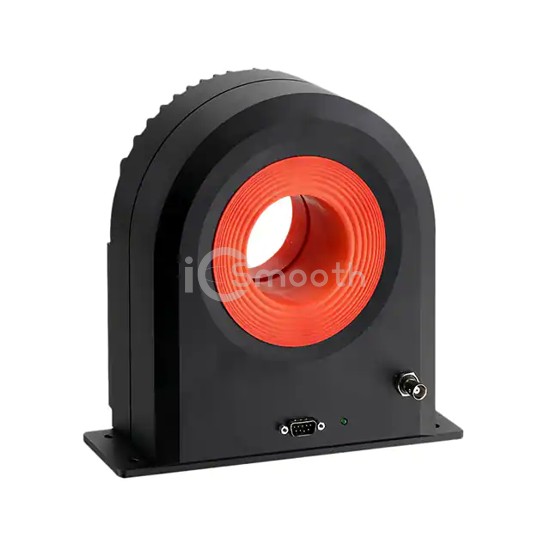

DL2000UB-10V

CURRENT TRANSDUCER 2000A

DL2000UB-10V is a Current Sensors manufactured by Danisense A/S. CURRENT TRANSDUCER 2000A. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 65°C (TA), voltage - supply ±14.25V ~ 15.75V, package / case Module, Single Pass Through.

Datasheet Request a Quote

In Stock: 4,840

Specifications

18 parameters

Product Status	Active
For Measuring	AC/DC
Sensor Type	Flux Gate, Closed Loop
Current - Sensing	2000A
Number of Channels	1
Output	Ratiometric, Voltage
Sensitivity	-
Frequency	DC ~ 300kHz
Linearity	±0.002%

Accuracy	-
Voltage - Supply	±14.25V ~ 15.75V
Response Time	1µs
Current - Supply (Max)	190mA
Operating Temperature	-40°C ~ 65°C (TA)
Polarization	Bidirectional
Mounting Type	Chassis Mount
Package / Case	Module, Single Pass Through
Supplier Device Package	-
