Name: CS1505B
Brand: CUI Devices
SKU: CS1505B
Price: 26.73 USD
Availability: InStock

REF: CS1505B CUI Devices

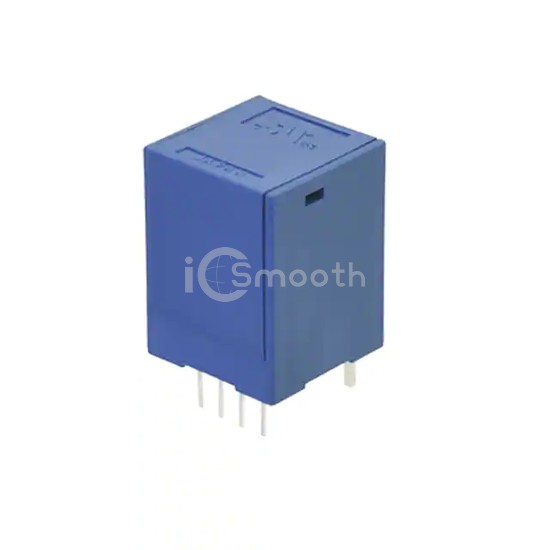

CS1505B

CURRENT SENSOR,OPEN LOOP,15A,+5V

CS1505B is a Current Sensors manufactured by CUI Devices. CURRENT SENSOR,OPEN LOOP,15A,+5V. Key specifications: mounting type Through Hole, operating temperature -10°C ~ 75°C, voltage - supply 4.75V ~ 5.25V, package / case Module.

Datasheet Request a Quote

In Stock: 30

Specifications

18 parameters

Product Status	Active
For Measuring	AC
Sensor Type	Open Loop
Current - Sensing	15A
Number of Channels	1
Output	Ratiometric, Voltage
Sensitivity	-
Frequency	DC ~ 40kHz
Linearity	±0.5%

Accuracy	±2.2%
Voltage - Supply	4.75V ~ 5.25V
Response Time	7µs
Current - Supply (Max)	25mA
Operating Temperature	-10°C ~ 75°C
Polarization	Bidirectional
Mounting Type	Through Hole
Package / Case	Module
Supplier Device Package	-
