CSR1013A05-IUUM-R

In Stock: 547

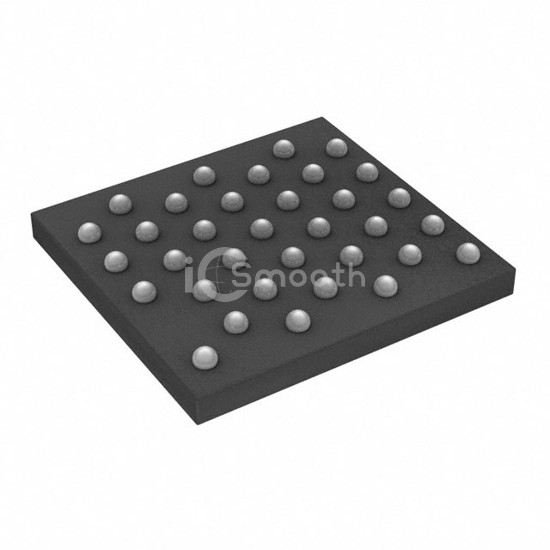

CSR1013A05-IUUM-R - Qualcomm - RF Transceiver ICs
REF: CSR1013A05-IUUM-R Qualcomm
CSR1013A05-IUUM-R

Qualcomm

IC RF TXRX+MCU BLUETOOTH 34XFBGA

CSR1013A05-IUUM-R is a RF Transceiver ICs manufactured by Qualcomm. IC RF TXRX+MCU BLUETOOTH 34XFBGA. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 85°C, voltage - supply 1.2V ~ 3.6V, package / case 34-XFBGA, WLCSP.

Datasheet Request a Quote

In Stock: 547

Specifications

19 parameters
Product StatusNot For New Designs
TypeTxRx + MCU
RF Family/StandardBluetooth
ProtocolBluetooth v4.0
Modulation-
Frequency2.4GHz
Data Rate (Max)3.69Mbaud
Power - Output9dBm
Sensitivity-92.5dBm
Memory Size64kB RAM, 64kB ROM
Serial InterfacesI²C, SPI, UART
GPIO13
Voltage - Supply1.2V ~ 3.6V
Current - Receiving20mA
Current - Transmitting18mA
Operating Temperature-30°C ~ 85°C
Mounting TypeSurface Mount
Package / Case34-XFBGA, WLCSP
Supplier Device Package34-BGA (2.51x2.38)
