CSR1011A05-IQQA-R

In Stock: 28,000

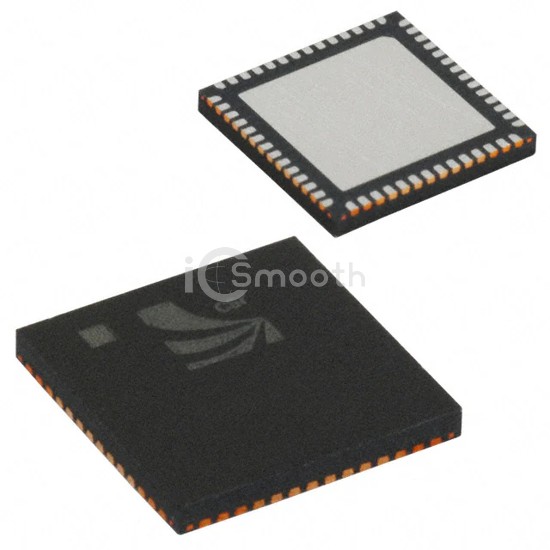

CSR1011A05-IQQA-R - Qualcomm - RF Transceiver ICs
REF: CSR1011A05-IQQA-R Qualcomm
CSR1011A05-IQQA-R

Qualcomm

IC RF TXRX+MCU BLUETOOTH 56VFQFN

CSR1011A05-IQQA-R is a RF Transceiver ICs manufactured by Qualcomm. IC RF TXRX+MCU BLUETOOTH 56VFQFN. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 85°C, voltage - supply 1.2V ~ 3.6V, package / case 56-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 28,000

Tiered Pricing USD
1+ $2.5200 —
10+ $2.1760 -14%
25+ $2.0552 -18%
100+ $1.8890 -25%
250+ $1.7893 -29%
500+ $1.7189 -32%
1,000+ $1.6525 -34% BEST

Specifications

19 parameters
Product StatusActive
TypeTxRx + MCU
RF Family/StandardBluetooth
ProtocolBluetooth v4.0
Modulation-
Frequency2.4GHz
Data Rate (Max)3.69Mbaud
Power - Output9dBm
Sensitivity-93dBm
Memory Size64kB RAM, 64kB ROM
Serial InterfacesI²C, SPI, UART
GPIO35
Voltage - Supply1.2V ~ 3.6V
Current - Receiving20mA
Current - Transmitting18mA
Operating Temperature-30°C ~ 85°C
Mounting TypeSurface Mount
Package / Case56-VFQFN Exposed Pad
Supplier Device Package56-QFN (8x8)
