CSR1001A04-IQQA-R

In Stock: 1,862

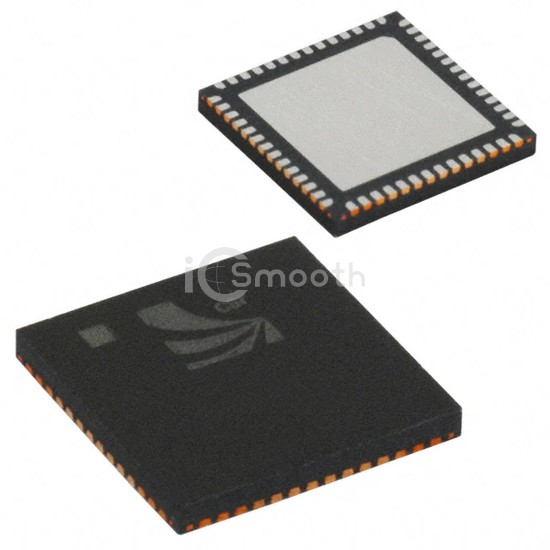

CSR1001A04-IQQA-R - Qualcomm - RF Transceiver ICs
REF: CSR1001A04-IQQA-R Qualcomm
CSR1001A04-IQQA-R

Qualcomm

IC RF TXRX+MCU BLUETOOTH 56QFN

CSR1001A04-IQQA-R is a RF Transceiver ICs manufactured by Qualcomm. IC RF TXRX+MCU BLUETOOTH 56QFN. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 85°C, voltage - supply 1.2V ~ 3.6V, package / case 56-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,862

Tiered Pricing USD
1+ $2.2200 —
10+ $1.8660 -16%
25+ $1.7476 -21%
100+ $1.5641 -30%
250+ $1.4562 -34%
500+ $1.3807 -38%
1,000+ $1.3350 -40% BEST

Specifications

19 parameters
Product StatusObsolete
TypeTxRx + MCU
RF Family/StandardBluetooth
ProtocolBluetooth v4.0
Modulation-
Frequency2.4GHz
Data Rate (Max)2MBaud
Power - Output7.5dBm
Sensitivity-92.5dBm
Memory Size64kB RAM, 64kB ROM
Serial InterfacesI²C, SPI, UART
GPIO35
Voltage - Supply1.2V ~ 3.6V
Current - Receiving16mA
Current - Transmitting16mA
Operating Temperature-30°C ~ 85°C
Mounting TypeSurface Mount
Package / Case56-VFQFN Exposed Pad
Supplier Device Package56-QFN (8x8)
