CSR1000A04-IQQM-R

In Stock: 3,892

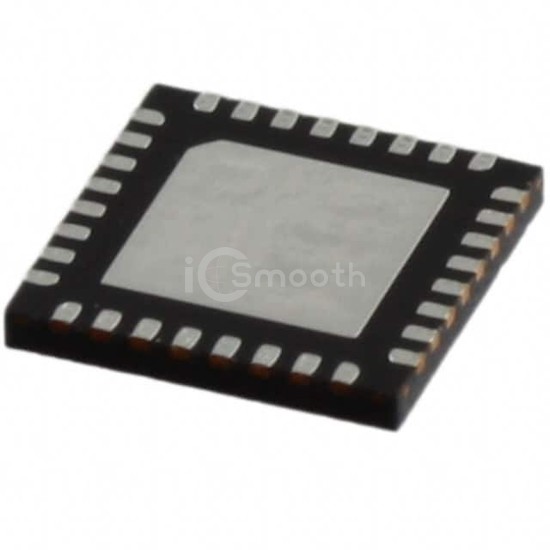

CSR1000A04-IQQM-R - Qualcomm - RF Transceiver ICs
REF: CSR1000A04-IQQM-R Qualcomm
CSR1000A04-IQQM-R

Qualcomm

IC RF TXRX+MCU BLUETOOTH 32UFQFN

CSR1000A04-IQQM-R is a RF Transceiver ICs manufactured by Qualcomm. IC RF TXRX+MCU BLUETOOTH 32UFQFN. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 85°C, voltage - supply 1.2V ~ 3.6V, package / case 32-UFQFN Exposed Pad.

Request a Quote

In Stock: 3,892

Specifications

19 parameters
Product StatusObsolete
TypeTxRx + MCU
RF Family/StandardBluetooth
ProtocolBluetooth v4.0
Modulation-
Frequency2.4GHz
Data Rate (Max)2MBaud
Power - Output7.5dBm
Sensitivity-92.5dBm
Memory Size64kB RAM, 64kB ROM
Serial InterfacesI²C, SPI, UART
GPIO15
Voltage - Supply1.2V ~ 3.6V
Current - Receiving16mA
Current - Transmitting16mA
Operating Temperature-30°C ~ 85°C
Mounting TypeSurface Mount
Package / Case32-UFQFN Exposed Pad
Supplier Device Package32-QFN (5x5)
