Name: CR9350-NPN
Brand: CR Magnetics Inc.
SKU: CR9350-NPN
Price: 40.69 USD
Availability: InStock

REF: CR9350-NPN CR Magnetics Inc.

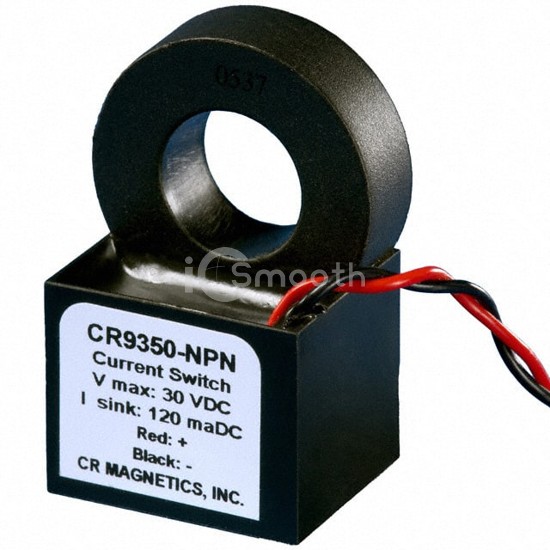

CR9350-NPN

SENSOR CURRENT SWITCH 100A NPN

CR9350-NPN is a Current Sensors manufactured by CR Magnetics Inc.. SENSOR CURRENT SWITCH 100A NPN. Key specifications: operating temperature -30°C ~ 60°C, voltage - supply Self Powered, package / case Module, Single Pass Through, frequency 50Hz ~ 400kHz.

Datasheet Request a Quote

In Stock: 5,047

Specifications

18 parameters

Product Status	Active
For Measuring	AC
Sensor Type	Current Switch
Current - Sensing	100A
Number of Channels	1
Output	NPN
Sensitivity	-
Frequency	50Hz ~ 400kHz
Linearity	-

Accuracy	-
Voltage - Supply	Self Powered
Response Time	100ms (On), 250ms (Off)
Current - Supply (Max)	-
Operating Temperature	-30°C ~ 60°C
Polarization	Bidirectional
Mounting Type	-
Package / Case	Module, Single Pass Through
Supplier Device Package	-
