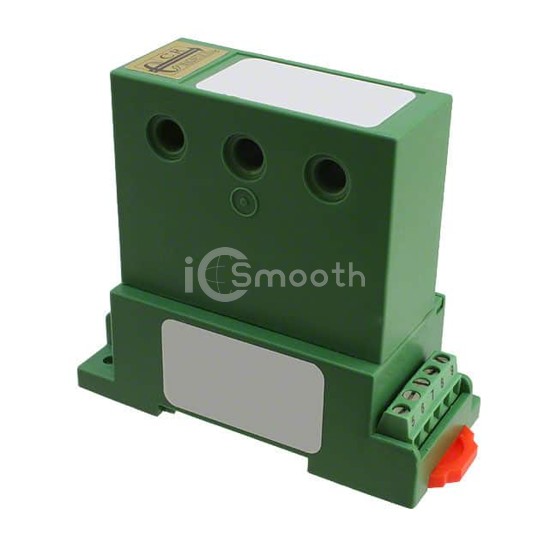

Name: CR4170-40
Brand: CR Magnetics Inc.
SKU: CR4170-40
Availability: InStock

REF: CR4170-40 CR Magnetics Inc.

CR4170-40

SENSOR CURRENT XFMR 40A AC

CR4170-40 is a Current Sensors manufactured by CR Magnetics Inc.. SENSOR CURRENT XFMR 40A AC. Key specifications: mounting type DIN Rail, Panel, operating temperature 0°C ~ 60°C, voltage - supply 24V, package / case Module, Triple Pass Through.

Datasheet Request a Quote

In Stock: 5,958

Specifications

18 parameters

Product Status	Obsolete
For Measuring	AC
Sensor Type	Transformer w/Conditioning
Current - Sensing	40A
Number of Channels	3
Output	Ratiometric, 0 V ~ 5 V
Sensitivity	-
Frequency	20Hz ~ 5kHz
Linearity	-

Accuracy	±0.5%
Voltage - Supply	24V
Response Time	250ms
Current - Supply (Max)	60mA
Operating Temperature	0°C ~ 60°C
Polarization	Bidirectional
Mounting Type	DIN Rail, Panel
Package / Case	Module, Triple Pass Through
Supplier Device Package	-
