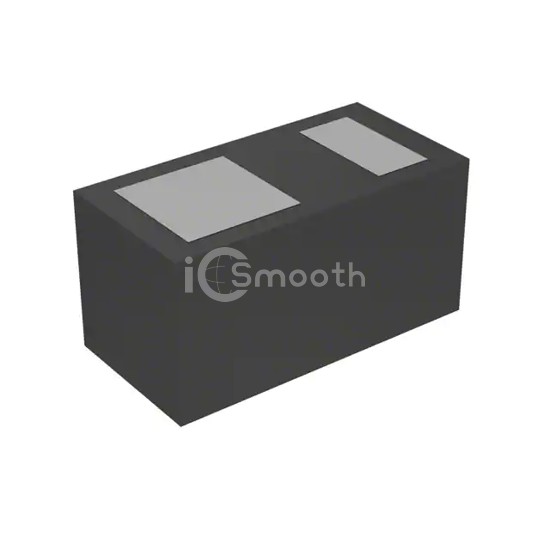

Name: CPDZ5V0C-HF
Brand: Comchip Technology
SKU: CPDZ5V0C-HF
Price: 0.48 USD
Availability: InStock

REF: CPDZ5V0C-HF Comchip Technology

CPDZ5V0C-HF

TVS DIODE 5VWM 15VC 0201/DFN0603

CPDZ5V0C-HF is a TVS - Diodes manufactured by Comchip Technology. TVS DIODE 5VWM 15VC 0201/DFN0603. Key specifications: mounting type Surface Mount, package / case 0201 (0603 Metric).

Datasheet Request a Quote

In Stock: 837

Tiered Pricing USD

1+ $0.4800 —

10+ $0.2960 -38%

100+ $0.1873 -61%

500+ $0.1403 -71%

1,000+ $0.1252 -74%

2,000+ $0.1124 -77%

5,000+ $0.0985 -79% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	5.5V
Voltage - Clamping (Max) @ Ipp	15V
Current - Peak Pulse (10/1000µs)	2A (8/20µs)

Power - Peak Pulse	30W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	6pF @ 1MHz
Operating Temperature	-
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	0201/DFN0603
