CPDVR105V0USP-HF

In Stock: 2,866

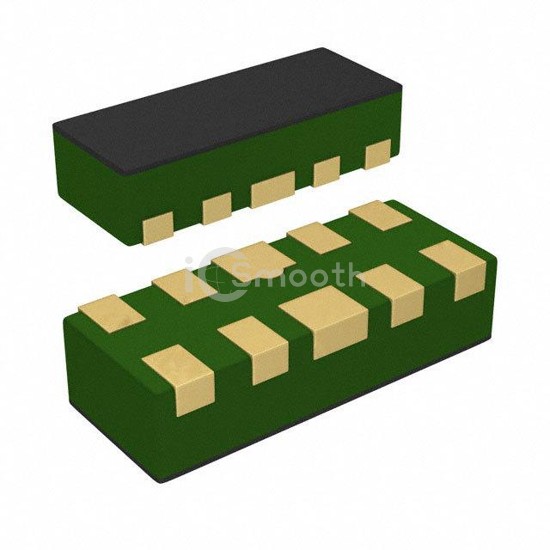

CPDVR105V0USP-HF - Comchip Technology - TVS - Diodes
REF: CPDVR105V0USP-HF Comchip Technology
CPDVR105V0USP-HF

Comchip Technology

TVS DIODE 5VWM 15VC SLP2510P8

CPDVR105V0USP-HF is a TVS - Diodes manufactured by Comchip Technology. TVS DIODE 5VWM 15VC SLP2510P8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 10-UFDFN.

In Stock: 2,866

Tiered Pricing USD
3,000+ $0.1698 —
6,000+ $0.1571 -7%
9,000+ $0.1505 -11%
15,000+ $0.1438 -15% BEST

Specifications

16 parameters
Product StatusObsolete
TypeSteering (Rail to Rail)
Unidirectional Channels4
Bidirectional Channels-
Voltage - Reverse Standoff (Typ)5V (Max)
Voltage - Breakdown (Min)6V
Voltage - Clamping (Max) @ Ipp15V
Current - Peak Pulse (10/1000µs)1A (8/20µs)
Power - Peak Pulse150W
Power Line ProtectionYes
ApplicationsGeneral Purpose
Capacitance @ Frequency0.8pF @ 1MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case10-UFDFN
Supplier Device PackageSLP2510P8
