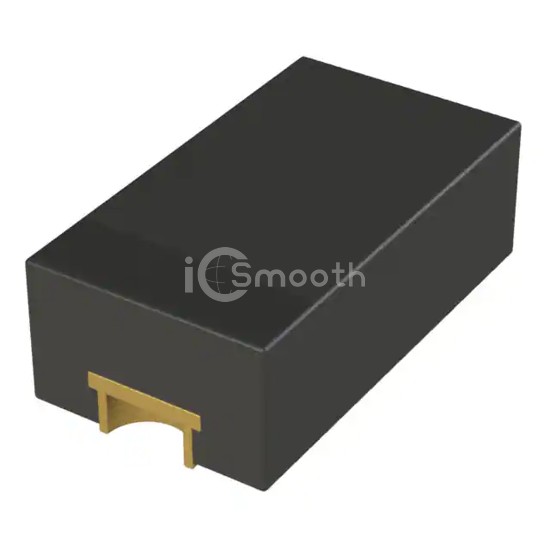

Name: CPDU5V0USP-HF
Brand: Comchip Technology
SKU: CPDU5V0USP-HF
Price: 0.30 USD
Availability: InStock

REF: CPDU5V0USP-HF Comchip Technology

CPDU5V0USP-HF

Comchip Technology

TVS DIODE 5VWM 25VC 0603/SOD523F

CPDU5V0USP-HF is a TVS - Diodes manufactured by Comchip Technology. TVS DIODE 5VWM 25VC 0603/SOD523F. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 0603 (1608 Metric).

Datasheet Request a Quote

In Stock: 9,866

Tiered Pricing USD

1+ $0.3000 —

10+ $0.1960 -35%

100+ $0.0800 -73% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	5.4V
Voltage - Clamping (Max) @ Ipp	25V
Current - Peak Pulse (10/1000µs)	3A (8/20µs)

Power - Peak Pulse	75W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	0.6pF @ 1MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	0603 (1608 Metric)
Supplier Device Package	0603/SOD-523F
