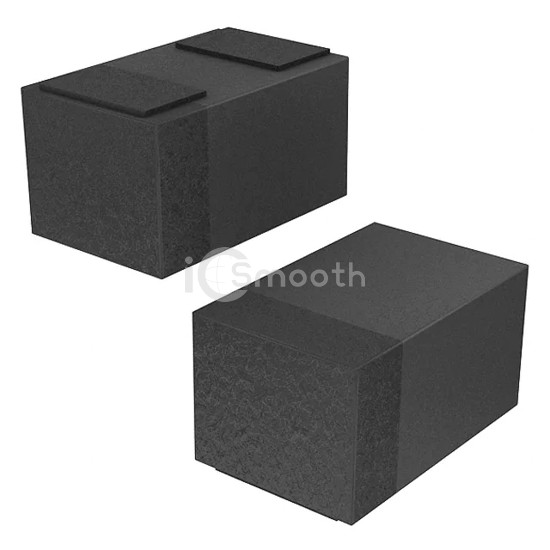

Name: CPDQR3-5V0UP
Brand: Comchip Technology
SKU: CPDQR3-5V0UP
Price: 0.06 USD
Availability: InStock

REF: CPDQR3-5V0UP Comchip Technology

CPDQR3-5V0UP

Comchip Technology

TVS DIODE 5VWM 12.5VC 0402-3P

CPDQR3-5V0UP is a TVS - Diodes manufactured by Comchip Technology. TVS DIODE 5VWM 12.5VC 0402-3P. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case 0402 (1006 Metric).

Datasheet Request a Quote

In Stock: 8,588

Tiered Pricing USD

3,000+ $0.0579 —

6,000+ $0.0527 -9%

9,000+ $0.0500 -14%

15,000+ $0.0469 -19%

21,000+ $0.0451 -22%

30,000+ $0.0434 -25%

75,000+ $0.0395 -32%

150,000+ $0.0391 -32% BEST

Specifications

16 parameters

Product Status	Obsolete
Type	Steering (Rail to Rail)
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5V
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	12.5V
Current - Peak Pulse (10/1000µs)	2A (8/20µs)

Power - Peak Pulse	25W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	10pF @ 1MHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	0402 (1006 Metric)
Supplier Device Package	0402-3P
