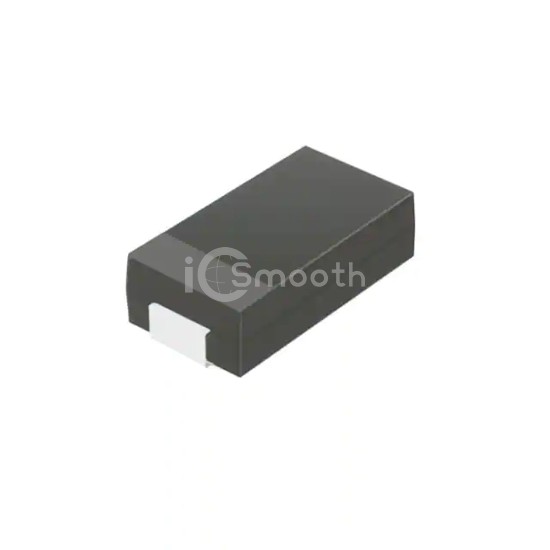

Name: 3.0SMCJ20A-HF
Brand: Comchip Technology
SKU: 3.0SMCJ20A-HF
Price: 0.32 USD
Availability: InStock

REF: 3.0SMCJ20A-HF Comchip Technology

3.0SMCJ20A-HF

Comchip Technology

DIODE TVS 20V 3000W SMC UNI-DIR

3.0SMCJ20A-HF is a TVS - Diodes manufactured by Comchip Technology. DIODE TVS 20V 3000W SMC UNI-DIR. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C (TJ), package / case DO-214AB, SMC.

Datasheet Request a Quote

In Stock: 5,332

Tiered Pricing USD

3,000+ $0.3236 —

6,000+ $0.2996 -7%

9,000+ $0.2874 -11%

15,000+ $0.2788 -14% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	20V
Voltage - Breakdown (Min)	22.2V
Voltage - Clamping (Max) @ Ipp	32.4V
Current - Peak Pulse (10/1000µs)	92.6A

Power - Peak Pulse	3000W (3kW)
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AB, SMC
Supplier Device Package	DO-214AB (SMC)
