Name: CS5506-BSZ
Brand: Cirrus Logic Inc.
SKU: CS5506-BSZ
Availability: InStock

REF: CS5506-BSZ Cirrus Logic Inc.

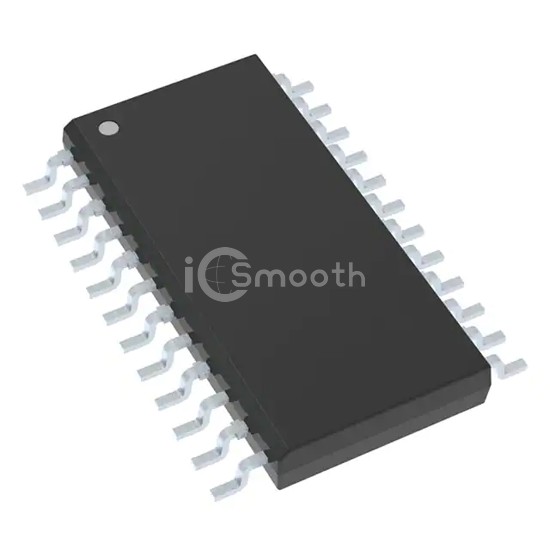

CS5506-BSZ

IC ADC 20BIT SIGMA-DELTA 24SOIC

CS5506-BSZ is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Cirrus Logic Inc.. IC ADC 20BIT SIGMA-DELTA 24SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 3.15V ~ 5.5V, package / case 24-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 2,034

Specifications

18 parameters

Product Status	Obsolete
Number of Bits	20
Sampling Rate (Per Second)	100
Number of Inputs	4
Input Type	Pseudo-Differential
Data Interface	SPI
Configuration	MUX-ADC
Ratio - S/H:ADC	-
Number of A/D Converters	1

Architecture	Sigma-Delta
Reference Type	External, Internal
Voltage - Supply, Analog	±5V
Voltage - Supply, Digital	3.15V ~ 5.5V
Features	Selectable Address
Operating Temperature	-40°C ~ 85°C
Package / Case	24-SOIC (0.295", 7.50mm Width)
Supplier Device Package	24-SOIC
Mounting Type	Surface Mount
