Name: CS5012A-BL7Z
Brand: Cirrus Logic Inc.
SKU: CS5012A-BL7Z
Availability: InStock

REF: CS5012A-BL7Z Cirrus Logic Inc.

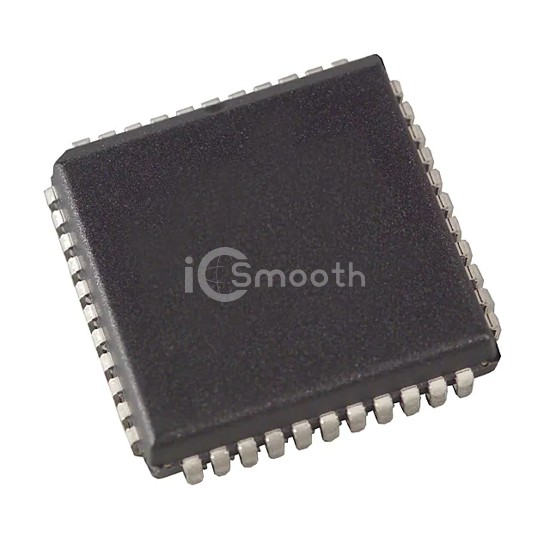

CS5012A-BL7Z

IC ADC 12BIT SAR 44PLCC

CS5012A-BL7Z is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Cirrus Logic Inc.. IC ADC 12BIT SAR 44PLCC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital ±5V, package / case 44-LCC (J-Lead).

Datasheet Request a Quote

In Stock: 7,963

Specifications

18 parameters

Product Status	Obsolete
Number of Bits	12
Sampling Rate (Per Second)	100k
Number of Inputs	1
Input Type	Single Ended
Data Interface	Parallel
Configuration	S/H-ADC
Ratio - S/H:ADC	1:1
Number of A/D Converters	1

Architecture	SAR
Reference Type	External
Voltage - Supply, Analog	±5V
Voltage - Supply, Digital	±5V
Features	-
Operating Temperature	-40°C ~ 85°C
Package / Case	44-LCC (J-Lead)
Supplier Device Package	44-PLCC (16.59x16.59)
Mounting Type	Surface Mount
