Name: MPQ7043 PBFREE
Brand: Central Semiconductor Corp
SKU: MPQ7043 PBFREE
Availability: InStock

REF: MPQ7043 PBFREE Central Semiconductor Corp

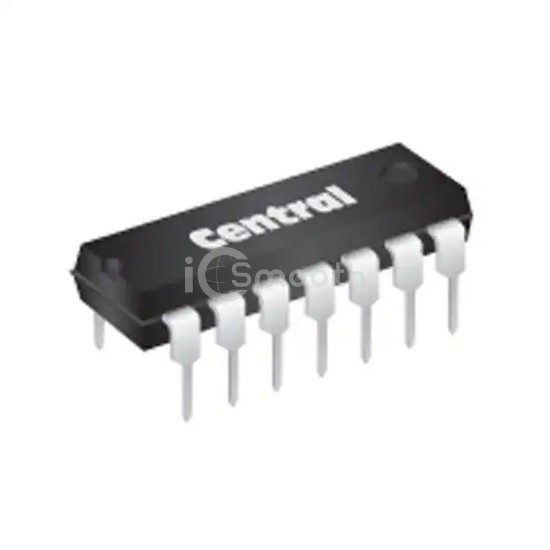

MPQ7043 PBFREE

TRANS 4NPN 250V 0.5A

MPQ7043 PBFREE is a Transistors - Bipolar (BJT) - Arrays manufactured by Central Semiconductor Corp. TRANS 4NPN 250V 0.5A. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 150°C (TJ), package / case 14-DIP (0.300", 7.62mm), current - collector (ic) (max) 500mA.

Datasheet Request a Quote

In Stock: 6,072

Specifications

13 parameters

Product Status	Obsolete
Transistor Type	4 NPN (Quad)
Current - Collector (Ic) (Max)	500mA
Voltage - Collector Emitter Breakdown (Max)	250V
Vce Saturation (Max) @ Ib, Ic	500mV @ 2mA, 20mA
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	40 @ 30mA, 10V

Power - Max	1.25W
Frequency - Transition	50MHz
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	14-DIP (0.300", 7.62mm)
Supplier Device Package	TO-116
