Name: MPQ3799 PBFREE
Brand: Central Semiconductor Corp
SKU: MPQ3799 PBFREE
Availability: InStock

REF: MPQ3799 PBFREE Central Semiconductor Corp

MPQ3799 PBFREE

TRANS 4PNP 60V 0.05A

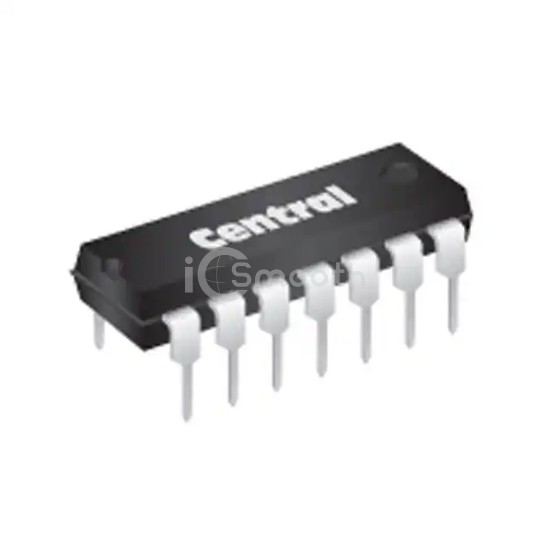

MPQ3799 PBFREE is a Transistors - Bipolar (BJT) - Arrays manufactured by Central Semiconductor Corp. TRANS 4PNP 60V 0.05A. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 150°C (TJ), package / case 14-DIP (0.300", 7.62mm), current - collector (ic) (max) 50mA.

Datasheet Request a Quote

In Stock: 7,649

Specifications

13 parameters

Product Status	Obsolete
Transistor Type	4 PNP (Quad)
Current - Collector (Ic) (Max)	50mA
Voltage - Collector Emitter Breakdown (Max)	60V
Vce Saturation (Max) @ Ib, Ic	250mV @ 100µA, 1mA
Current - Collector Cutoff (Max)	10nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	250 @ 10mA, 5V

Power - Max	500mW
Frequency - Transition	60MHz
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	14-DIP (0.300", 7.62mm)
Supplier Device Package	TO-116
