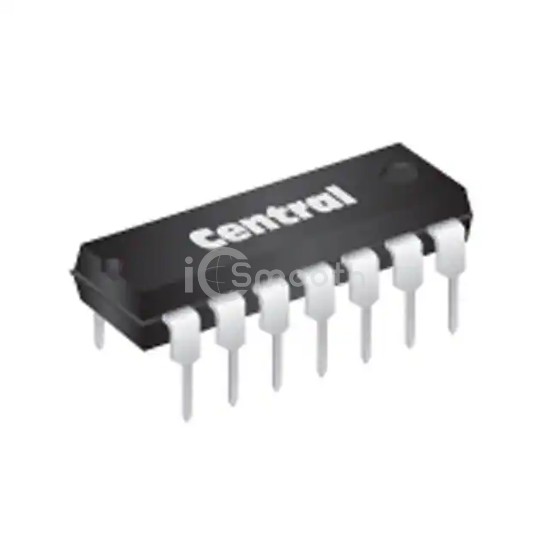

Name: MPQ3725A TIN/LEAD
Brand: Central Semiconductor Corp
SKU: MPQ3725A TIN/LEAD
Availability: InStock

REF: MPQ3725A TIN/LEAD Central Semiconductor Corp

MPQ3725A TIN/LEAD

TRANS 4NPN 50V 1A

MPQ3725A TIN/LEAD is a Transistors - Bipolar (BJT) - Arrays manufactured by Central Semiconductor Corp. TRANS 4NPN 50V 1A. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 150°C (TJ), package / case 14-DIP (0.300", 7.62mm), current - collector (ic) (max) 1A.

Datasheet Request a Quote

In Stock: 1,863

Specifications

13 parameters

Product Status	Obsolete
Transistor Type	4 NPN (Quad)
Current - Collector (Ic) (Max)	1A
Voltage - Collector Emitter Breakdown (Max)	50V
Vce Saturation (Max) @ Ib, Ic	450mV @ 50mA, 500mA
Current - Collector Cutoff (Max)	500nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	30 @ 500mA, 2V

Power - Max	1W
Frequency - Transition	200MHz
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	14-DIP (0.300", 7.62mm)
Supplier Device Package	TO-116
