MPQ2369 TIN/LEAD

In Stock: 152

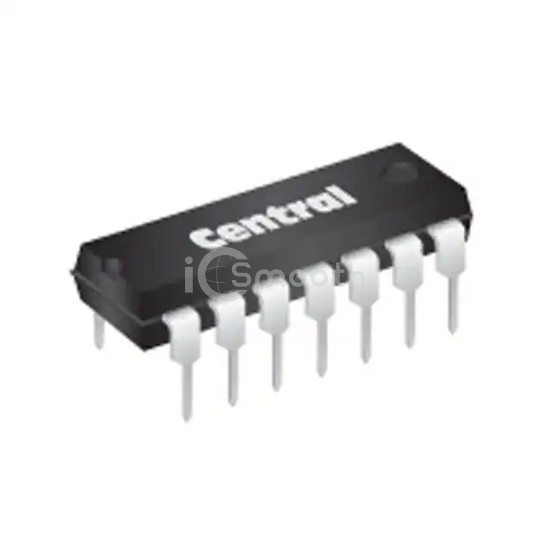

MPQ2369 TIN/LEAD - Central Semiconductor Corp - Transistors - Bipolar (BJT) - Arrays
REF: MPQ2369 TIN/LEAD Central Semiconductor Corp
MPQ2369 TIN/LEAD

Central Semiconductor Corp

TRANS 4NPN 15V 0.5A

MPQ2369 TIN/LEAD is a Transistors - Bipolar (BJT) - Arrays manufactured by Central Semiconductor Corp. TRANS 4NPN 15V 0.5A. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 150°C (TJ), package / case 14-DIP (0.300", 7.62mm), current - collector (ic) (max) 500mA.

Datasheet Request a Quote

In Stock: 152

Specifications

13 parameters
Product StatusObsolete
Transistor Type4 NPN (Quad)
Current - Collector (Ic) (Max)500mA
Voltage - Collector Emitter Breakdown (Max)15V
Vce Saturation (Max) @ Ib, Ic250mV @ 1mA, 10mA
Current - Collector Cutoff (Max)400nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce20 @ 100mA, 2V
Power - Max500mW
Frequency - Transition450MHz
Operating Temperature-65°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / Case14-DIP (0.300", 7.62mm)
Supplier Device PackageTO-116
