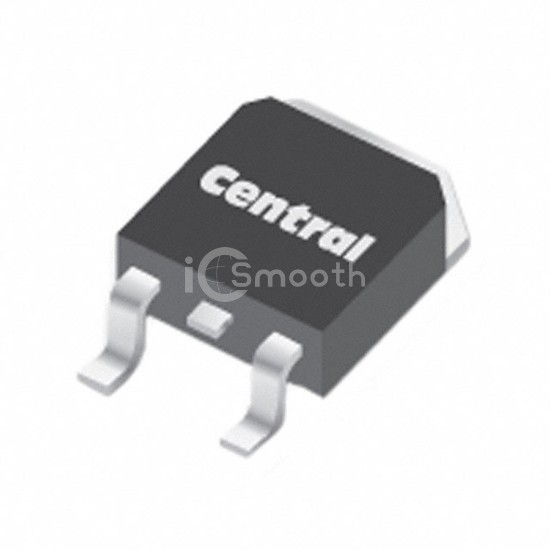

Name: CUDD8-02 TR13 PBFREE
Brand: Central Semiconductor Corp
SKU: CUDD8-02 TR13 PBFREE
Price: 2.26 USD
Availability: InStock

REF: CUDD8-02 TR13 PBFREE Central Semiconductor Corp

CUDD8-02 TR13 PBFREE

Central Semiconductor Corp

DIODE GEN PURP 200V 8A D2PAK

CUDD8-02 TR13 PBFREE is a Diodes - Rectifiers - Single manufactured by Central Semiconductor Corp. DIODE GEN PURP 200V 8A D2PAK. Key specifications: mounting type Surface Mount, package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Datasheet Request a Quote

In Stock: 706

Specifications

13 parameters

Product Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	200 V
Current - Average Rectified (Io)	8A
Voltage - Forward (Vf) (Max) @ If	975 mV @ 8 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	25 ns

Current - Reverse Leakage @ Vr	5 µA @ 200 V
Capacitance @ Vr, F	80pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package	D2PAK
Operating Temperature - Junction	-65°C ~ 150°C
