CSHD10-45L TR13 PBFREE

In Stock: 6,582

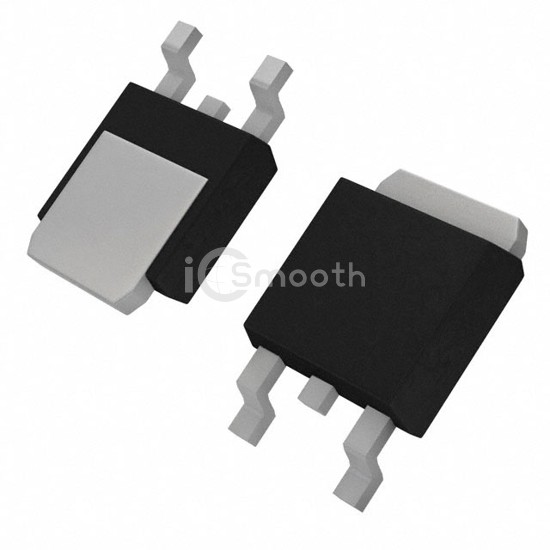

CSHD10-45L TR13 PBFREE - Central Semiconductor Corp - Diodes - Rectifiers - Single
REF: CSHD10-45L TR13 PBFREE Central Semiconductor Corp
CSHD10-45L TR13 PBFREE

Central Semiconductor Corp

DIODE SCHOTTKY 45V 10A DPAK

CSHD10-45L TR13 PBFREE is a Diodes - Rectifiers - Single manufactured by Central Semiconductor Corp. DIODE SCHOTTKY 45V 10A DPAK. Key specifications: mounting type Surface Mount, package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 6,582

Specifications

13 parameters
Product StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)45 V
Current - Average Rectified (Io)10A
Voltage - Forward (Vf) (Max) @ If750 mV @ 10 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr100 µA @ 45 V
Capacitance @ Vr, F-
Mounting TypeSurface Mount
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device PackageDPAK
Operating Temperature - Junction-65°C ~ 150°C
