Name: CS202-4N
Brand: Central Semiconductor Corp
SKU: CS202-4N
Availability: InStock

REF: CS202-4N Central Semiconductor Corp

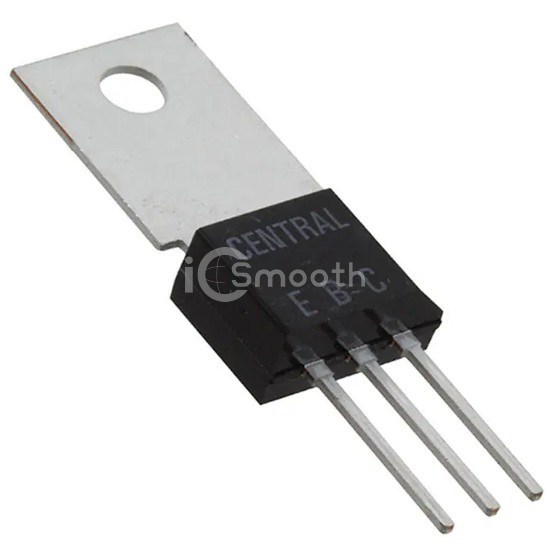

CS202-4N

SCR 800V 4A TO202

CS202-4N is a Thyristors - SCRs manufactured by Central Semiconductor Corp. SCR 800V 4A TO202. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case TO-202 Long Tab.

Datasheet Request a Quote

In Stock: 6,466

Specifications

15 parameters

Product Status	Obsolete
Voltage - Off State	800 V
Voltage - Gate Trigger (Vgt) (Max)	800 mV
Current - Gate Trigger (Igt) (Max)	200 µA
Voltage - On State (Vtm) (Max)	1.8 V
Current - On State (It (AV)) (Max)	-
Current - On State (It (RMS)) (Max)	4 A
Current - Hold (Ih) (Max)	2 mA

Current - Off State (Max)	-
Current - Non Rep. Surge 50, 60Hz (Itsm)	-
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole
Package / Case	TO-202 Long Tab
Supplier Device Package	TO-202
