Name: CJD200 TR13
Brand: Central Semiconductor Corp
SKU: CJD200 TR13
Availability: InStock

REF: CJD200 TR13 Central Semiconductor Corp

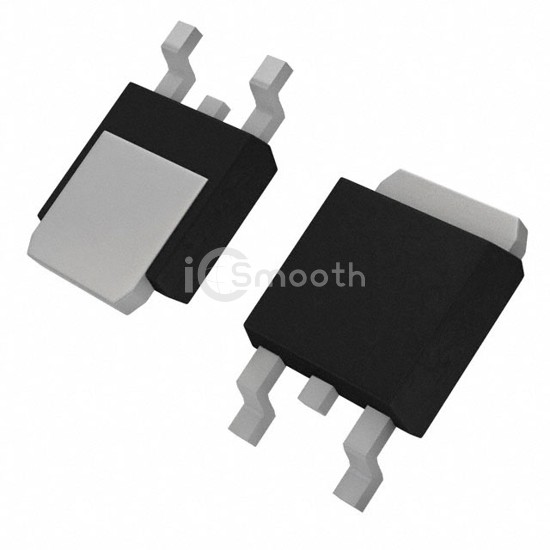

CJD200 TR13

TRANS NPN 25V 5A DPAK

CJD200 TR13 is a Transistors - Bipolar (BJT) - Single manufactured by Central Semiconductor Corp. TRANS NPN 25V 5A DPAK. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63, current - collector (ic) (max) 5 A.

Datasheet Request a Quote

In Stock: 4,282

Specifications

13 parameters

Product Status	Obsolete
Transistor Type	NPN
Current - Collector (Ic) (Max)	5 A
Voltage - Collector Emitter Breakdown (Max)	25 V
Vce Saturation (Max) @ Ib, Ic	1.8V @ 1A, 5A
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	45 @ 2A, 1V

Power - Max	1.4 W
Frequency - Transition	65MHz
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package	DPAK
