2N5109 PBFREE

In Stock: 4,101

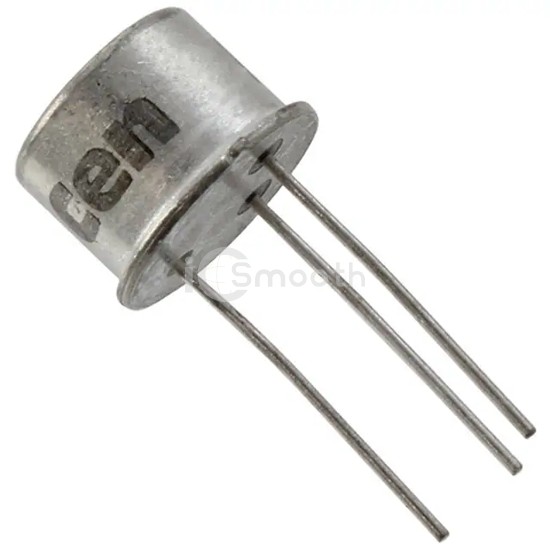

2N5109 PBFREE - Central Semiconductor Corp - Transistors - Bipolar (BJT) - RF
REF: 2N5109 PBFREE Central Semiconductor Corp
2N5109 PBFREE

Central Semiconductor Corp

RF TRANS NPN 20V 1.2GHZ TO39

2N5109 PBFREE is a Transistors - Bipolar (BJT) - RF manufactured by Central Semiconductor Corp. RF TRANS NPN 20V 1.2GHZ TO39. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 200°C (TJ), package / case TO-205AD, TO-39-3 Metal Can, current - collector (ic) (max) 400mA.

Datasheet Request a Quote

In Stock: 4,101

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)20V
Frequency - Transition1.2GHz
Noise Figure (dB Typ @ f)3dB @ 200MHz
Gain-
Power - Max1W
DC Current Gain (hFE) (Min) @ Ic, Vce40 @ 50mA, 15V
Current - Collector (Ic) (Max)400mA
Operating Temperature-65°C ~ 200°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-205AD, TO-39-3 Metal Can
Supplier Device PackageTO-39
