UPG2422TK-A

In Stock: 4,900

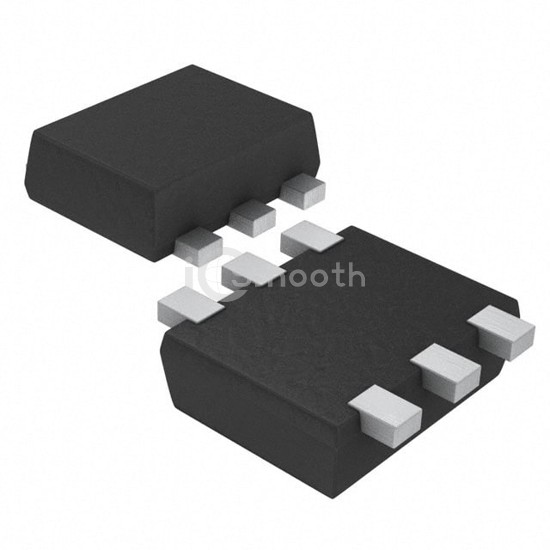

UPG2422TK-A - CEL - RF Switches
REF: UPG2422TK-A CEL
UPG2422TK-A

CEL

IC RF SWITCH SPDT 6GHZ 6MINIMOLD

UPG2422TK-A is a RF Switches manufactured by CEL. IC RF SWITCH SPDT 6GHZ 6MINIMOLD. Key specifications: operating temperature -45°C ~ 85°C, package / case 6-SMD, Flat Leads, frequency range 50MHz ~ 6GHz, impedance 50Ohm.

Datasheet Request a Quote

In Stock: 4,900

Specifications

16 parameters
Product StatusObsolete
RF Type802.11a/b/g/n
TopologyReflective
CircuitSPDT
Frequency Range50MHz ~ 6GHz
Isolation28dB
Insertion Loss0.55dB
Test Frequency6GHz
P1dB31dBm
IIP357dBm
Features-
Impedance50Ohm
Voltage - Supply-
Operating Temperature-45°C ~ 85°C
Package / Case6-SMD, Flat Leads
Supplier Device Package6-Minimold
