UPG2406TK-A

In Stock: 6,825

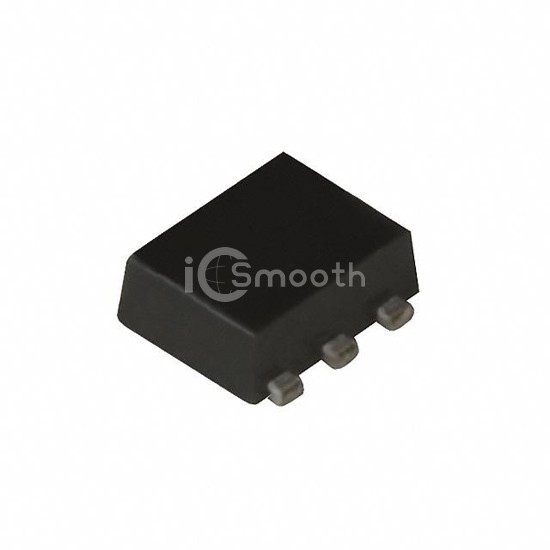

UPG2406TK-A - CEL - RF Switches
REF: UPG2406TK-A CEL
UPG2406TK-A

CEL

IC RF SWITCH SPDT 3GHZ 6MINIMOLD

UPG2406TK-A is a RF Switches manufactured by CEL. IC RF SWITCH SPDT 3GHZ 6MINIMOLD. Key specifications: operating temperature -45°C ~ 85°C, package / case 6-SMD, Flat Leads, frequency range 10MHz ~ 3GHz, impedance 50Ohm.

Datasheet Request a Quote

In Stock: 6,825

Specifications

16 parameters
Product StatusObsolete
RF TypeBluetooth, WLAN
TopologyReflective
CircuitSPDT
Frequency Range10MHz ~ 3GHz
Isolation17dB
Insertion Loss0.53dB
Test Frequency3GHz
P1dB30.5dBm
IIP360dBm
Features-
Impedance50Ohm
Voltage - Supply-
Operating Temperature-45°C ~ 85°C
Package / Case6-SMD, Flat Leads
Supplier Device Package6-Minimold
