UPG2214TB-E4A-A

In Stock: 2,903

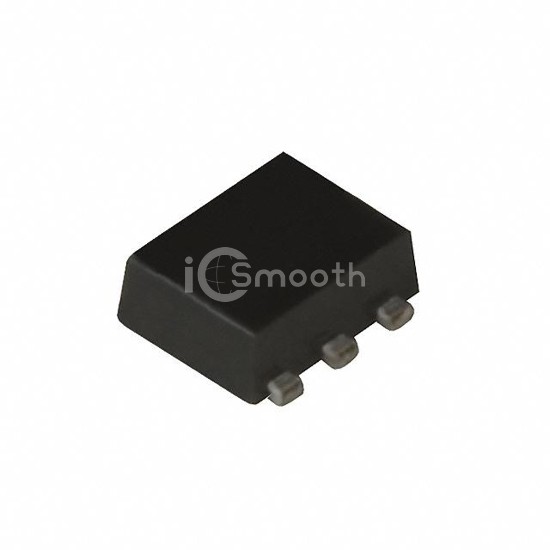

UPG2214TB-E4A-A - CEL - RF Switches
REF: UPG2214TB-E4A-A CEL
UPG2214TB-E4A-A

CEL

IC RF SWITCH SPDT 3GHZ 6MINIMOLD

UPG2214TB-E4A-A is a RF Switches manufactured by CEL. IC RF SWITCH SPDT 3GHZ 6MINIMOLD. Key specifications: operating temperature -45°C ~ 85°C, voltage - supply 1.8V ~ 5.3V, package / case 6-SMD, Flat Leads, frequency range 50MHz ~ 3GHz.

Datasheet Request a Quote

In Stock: 2,903

Specifications

16 parameters
Product StatusObsolete
RF TypeBluetooth, WLAN
Topology-
CircuitSPDT
Frequency Range50MHz ~ 3GHz
Isolation24dB
Insertion Loss0.35dB
Test Frequency3GHz
P1dB20dBm
IIP358dBm
Features-
Impedance-
Voltage - Supply1.8V ~ 5.3V
Operating Temperature-45°C ~ 85°C
Package / Case6-SMD, Flat Leads
Supplier Device Package6-Minimold
