UPD5713TK-A

In Stock: 9,111

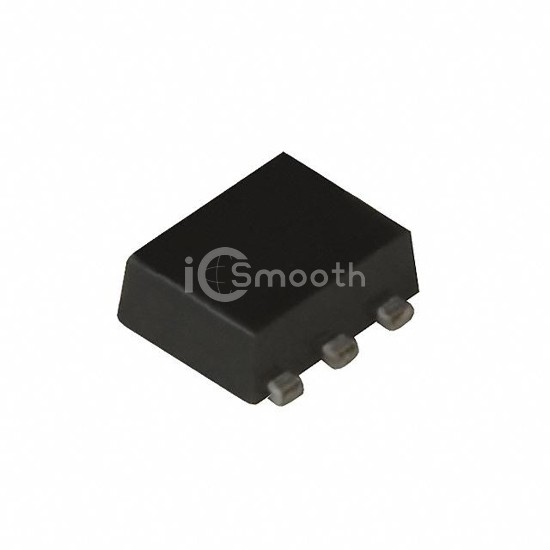

UPD5713TK-A - CEL - RF Switches
REF: UPD5713TK-A CEL
UPD5713TK-A

CEL

IC RF SWITCH SPDT 2.5GHZ 6MINIM

UPD5713TK-A is a RF Switches manufactured by CEL. IC RF SWITCH SPDT 2.5GHZ 6MINIM. Key specifications: operating temperature -45°C ~ 85°C, voltage - supply 1.8V ~ 3.6V, package / case 6-SMD, Flat Leads, frequency range 50MHz ~ 2.5GHz.

Datasheet Request a Quote

In Stock: 9,111

Specifications

16 parameters
Product StatusObsolete
RF Type802.15.1/Bluetooth, Cellular, PCS, WLAN, WLL
TopologyReflective
CircuitSPDT
Frequency Range50MHz ~ 2.5GHz
Isolation22.5dB
Insertion Loss0.95dB
Test Frequency2.5GHz
P1dB21dBm
IIP3-
Features-
Impedance50Ohm
Voltage - Supply1.8V ~ 3.6V
Operating Temperature-45°C ~ 85°C
Package / Case6-SMD, Flat Leads
Supplier Device Package6-Minimold
