PS9905-Y-V-AX

In Stock: 4,470

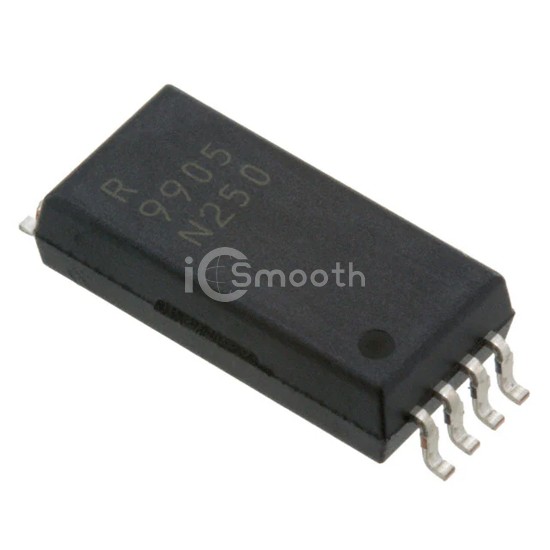

PS9905-Y-V-AX - CEL - Isolators - Gate Drivers
REF: PS9905-Y-V-AX CEL
PS9905-Y-V-AX

CEL

OPTOISO 7.5KV GATE DRIVER 8LSDIP

PS9905-Y-V-AX is a Isolators - Gate Drivers manufactured by CEL. OPTOISO 7.5KV GATE DRIVER 8LSDIP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 110°C, voltage - forward (vf) (typ) 1.56V, package / case 8-SOIC (0.543", 13.80mm Width).

Datasheet Request a Quote

In Stock: 4,470

Specifications

18 parameters
Product StatusDiscontinued at Digi-Key
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation7500Vrms
Common Mode Transient Immunity (Min)25kV/µs
Propagation Delay tpLH / tpHL (Max)150ns, 150ns
Pulse Width Distortion (Max)75ns
Rise / Fall Time (Typ)50ns, 50ns
Current - Output High, Low2A, 2A
Current - Peak Output2.5A
Voltage - Forward (Vf) (Typ)1.56V
Current - DC Forward (If) (Max)25 mA
Voltage - Output Supply15V ~ 30V
Operating Temperature-40°C ~ 110°C
Mounting TypeSurface Mount
Package / Case8-SOIC (0.543", 13.80mm Width)
Supplier Device Package8-LSDIP
Approval AgencyCSA, SEMKO, UL, VDE
