PS9505L1-AX

CEL

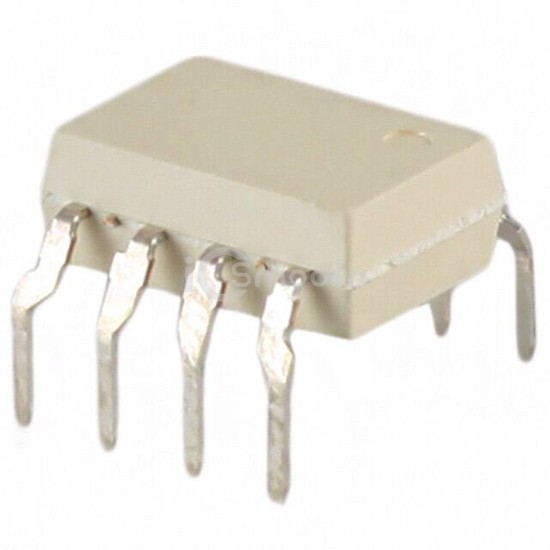

OPTOISO 5KV 1CH GATE DRIVER 8DIP

PS9505L1-AX is a Isolators - Gate Drivers manufactured by CEL. OPTOISO 5KV 1CH GATE DRIVER 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 110°C, voltage - forward (vf) (typ) 1.56V, package / case 8-DIP (0.400", 10.16mm).

Datasheet Request a Quote

In Stock: 3,636

Specifications

18 parameters
Product StatusDiscontinued at Digi-Key
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)25kV/µs
Propagation Delay tpLH / tpHL (Max)250ns, 250ns
Pulse Width Distortion (Max)100ns
Rise / Fall Time (Typ)50ns, 50ns
Current - Output High, Low2A, 2A
Current - Peak Output2.5A
Voltage - Forward (Vf) (Typ)1.56V
Current - DC Forward (If) (Max)25 mA
Voltage - Output Supply15V ~ 30V
Operating Temperature-40°C ~ 110°C
Mounting TypeThrough Hole
Package / Case8-DIP (0.400", 10.16mm)
Supplier Device Package8-DIP
Approval AgencyCSA, SEMKO, UL
