Name: PS9402-V-AX
Brand: CEL
SKU: PS9402-V-AX
Price: 18.34 USD
Availability: InStock

REF: PS9402-V-AX CEL

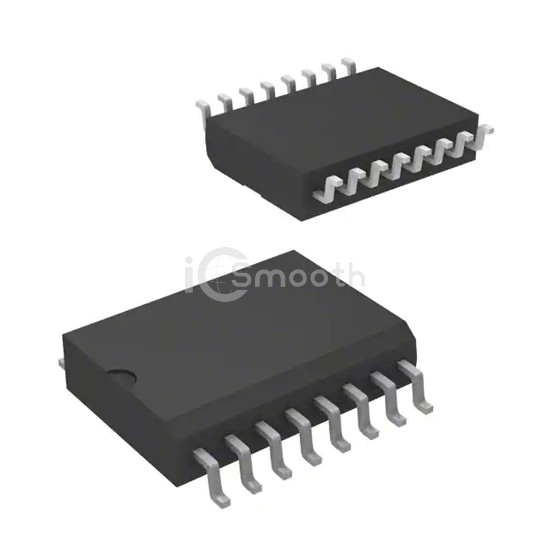

PS9402-V-AX

OPTOISO 5KV 1CH GATE DRVR 16SSOP

PS9402-V-AX is a Isolators - Gate Drivers manufactured by CEL. OPTOISO 5KV 1CH GATE DRVR 16SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 110°C, voltage - forward (vf) (typ) 1.56V, package / case 16-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 9,071

Specifications

18 parameters

Product Status	Discontinued at Digi-Key
Technology	Optical Coupling
Number of Channels	1
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	25kV/µs
Propagation Delay tpLH / tpHL (Max)	200ns, 200ns
Pulse Width Distortion (Max)	100ns
Rise / Fall Time (Typ)	50ns, 50ns
Current - Output High, Low	2A, 2A

Current - Peak Output	2.5A
Voltage - Forward (Vf) (Typ)	1.56V
Current - DC Forward (If) (Max)	25 mA
Voltage - Output Supply	15V ~ 30V
Operating Temperature	-40°C ~ 110°C
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package	16-SSOP
Approval Agency	CSA, UL, VDE
