PS9306L2-AX

In Stock: 5,824
PS9306L2-AX - CEL - Isolators - Gate Drivers
REF: PS9306L2-AX CEL
PS9306L2-AX

CEL

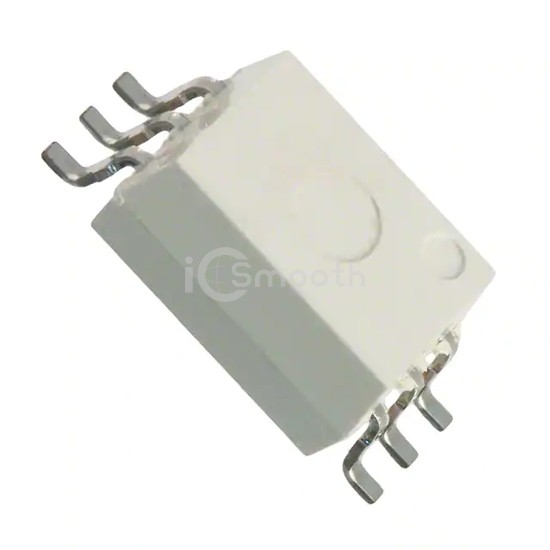

OPTOISO 5KV GATE DRIVER 6SDIP GW

PS9306L2-AX is a Isolators - Gate Drivers manufactured by CEL. OPTOISO 5KV GATE DRIVER 6SDIP GW. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 110°C, voltage - forward (vf) (typ) 1.56V, package / case 6-SOIC (0.268", 6.80mm Width).

Datasheet Request a Quote

In Stock: 5,824

Specifications

18 parameters
Product StatusDiscontinued at Digi-Key
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)25kV/µs
Propagation Delay tpLH / tpHL (Max)400ns, 400ns
Pulse Width Distortion (Max)250ns
Rise / Fall Time (Typ)50ns, 50ns
Current - Output High, Low400mA, 400mA
Current - Peak Output600mA
Voltage - Forward (Vf) (Typ)1.56V
Current - DC Forward (If) (Max)25 mA
Voltage - Output Supply10V ~ 30V
Operating Temperature-40°C ~ 110°C
Mounting TypeSurface Mount
Package / Case6-SOIC (0.268", 6.80mm Width)
Supplier Device Package6-SDIP Gull Wing
Approval AgencyCSA, SEMKO, UL
