PS9305L-AX

In Stock: 3
PS9305L-AX - CEL - Isolators - Gate Drivers
REF: PS9305L-AX CEL
PS9305L-AX

CEL

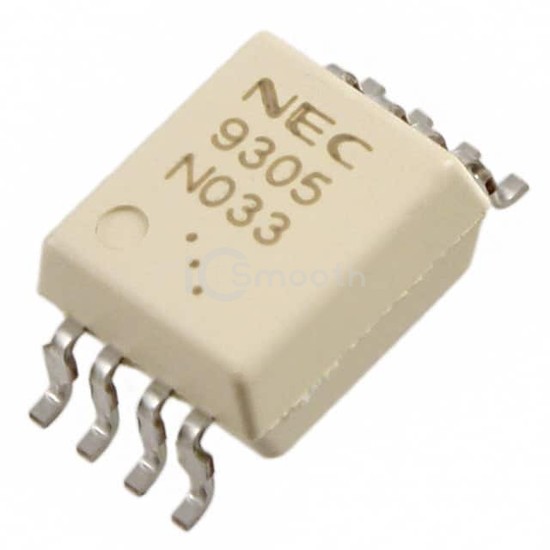

OPTOISO 5KV GATE DRIVER 8SDIP GW

PS9305L-AX is a Isolators - Gate Drivers manufactured by CEL. OPTOISO 5KV GATE DRIVER 8SDIP GW. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 110°C, voltage - forward (vf) (typ) 1.56V, package / case 8-SOIC (0.268", 6.81mm Width).

Datasheet Request a Quote

In Stock: 3

Specifications

18 parameters
Product StatusActive
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)25kV/µs
Propagation Delay tpLH / tpHL (Max)250ns, 250ns
Pulse Width Distortion (Max)100ns
Rise / Fall Time (Typ)50ns, 50ns
Current - Output High, Low2A, 2A
Current - Peak Output2.5A
Voltage - Forward (Vf) (Typ)1.56V
Current - DC Forward (If) (Max)25 mA
Voltage - Output Supply15V ~ 30V
Operating Temperature-40°C ~ 110°C
Mounting TypeSurface Mount
Package / Case8-SOIC (0.268", 6.81mm Width)
Supplier Device Package8-SDIP Gull Wing
Approval AgencyCSA, SEMKO, UL
