Name: PS2841-4B-A
Brand: CEL
SKU: PS2841-4B-A
Availability: InStock

REF: PS2841-4B-A CEL

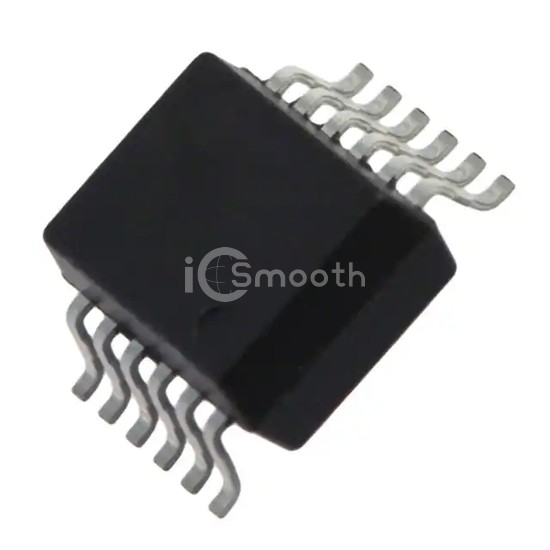

PS2841-4B-A

OPTOISO 1.5KV 4CH TRANS 12BSOP

PS2841-4B-A is a Optoisolators - Transistor, Photovoltaic Output manufactured by CEL. OPTOISO 1.5KV 4CH TRANS 12BSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.1V, package / case 12-BSOP (0.173", 4.40mm Width).

Datasheet Request a Quote

In Stock: 8,018

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	4
Voltage - Isolation	1500Vrms
Current Transfer Ratio (Min)	100% @ 1mA
Current Transfer Ratio (Max)	400% @ 1mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	20µs, 110µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	70V
Current - Output / Channel	20mA
Voltage - Forward (Vf) (Typ)	1.1V
Current - DC Forward (If) (Max)	20 mA
Vce Saturation (Max)	300mV
Operating Temperature	-40°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	12-BSOP (0.173", 4.40mm Width)
Supplier Device Package	12-SSOP
