Name: PS2761B-1-F3-L-A
Brand: CEL
SKU: PS2761B-1-F3-L-A
Price: 0.44 USD
Availability: InStock

REF: PS2761B-1-F3-L-A CEL

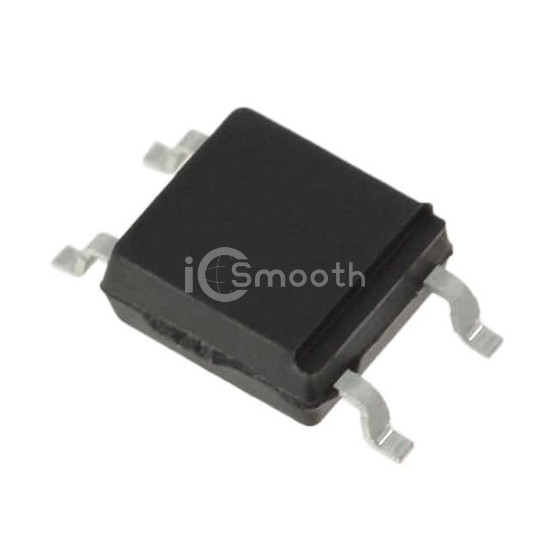

PS2761B-1-F3-L-A

OPTOISOLATOR 3.75KV TRANS 4SMD

PS2761B-1-F3-L-A is a Optoisolators - Transistor, Photovoltaic Output manufactured by CEL. OPTOISOLATOR 3.75KV TRANS 4SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 110°C, voltage - forward (vf) (typ) 1.1V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 6,589

Tiered Pricing USD

3,500+ $0.4433 —

7,000+ $0.4333 -2%

10,500+ $0.4233 -5% BEST

Specifications

18 parameters

Product Status	Discontinued at Digi-Key
Number of Channels	1
Voltage - Isolation	3750Vrms
Current Transfer Ratio (Min)	100% @ 5mA
Current Transfer Ratio (Max)	300% @ 5mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	4µs, 5µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	70V
Current - Output / Channel	40mA
Voltage - Forward (Vf) (Typ)	1.1V
Current - DC Forward (If) (Max)	25 mA
Vce Saturation (Max)	300mV
Operating Temperature	-55°C ~ 110°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SOP
