PS2701A-1-F3-A

In Stock: 3,760

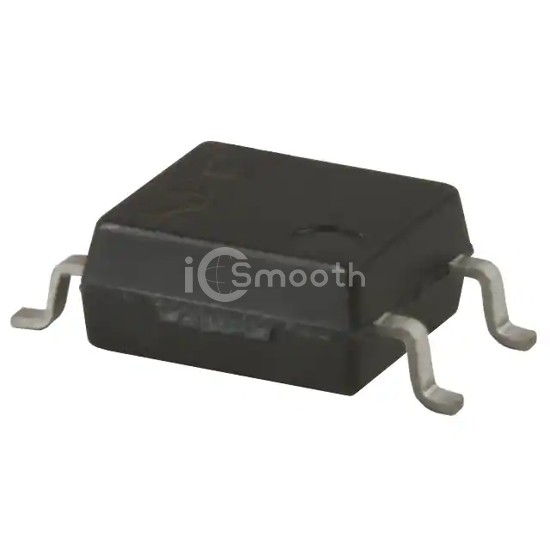

PS2701A-1-F3-A - CEL - Optoisolators - Transistor, Photovoltaic Output
REF: PS2701A-1-F3-A CEL
PS2701A-1-F3-A

CEL

OPTOISOLATOR 3.75KV TRANS 4SMD

PS2701A-1-F3-A is a Optoisolators - Transistor, Photovoltaic Output manufactured by CEL. OPTOISOLATOR 3.75KV TRANS 4SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 3,760

Tiered Pricing USD
1+ $0.9900 —
10+ $0.6940 -30%
100+ $0.5127 -48%
500+ $0.4318 -56%
1,000+ $0.4053 -59% BEST

Specifications

18 parameters
Product StatusDiscontinued at Digi-Key
Number of Channels1
Voltage - Isolation3750Vrms
Current Transfer Ratio (Min)50% @ 5mA
Current Transfer Ratio (Max)300% @ 5mA
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)5µs, 7µs
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)70V
Current - Output / Channel30mA
Voltage - Forward (Vf) (Typ)1.2V
Current - DC Forward (If) (Max)30 mA
Vce Saturation (Max)300mV
Operating Temperature-55°C ~ 100°C
Mounting TypeSurface Mount
Package / Case4-SMD, Gull Wing
Supplier Device Package4-SOP
