Name: PS2561AL2-1-V-F3-L-A
Brand: CEL
SKU: PS2561AL2-1-V-F3-L-A
Price: 0.18 USD
Availability: InStock

REF: PS2561AL2-1-V-F3-L-A CEL

PS2561AL2-1-V-F3-L-A

CEL

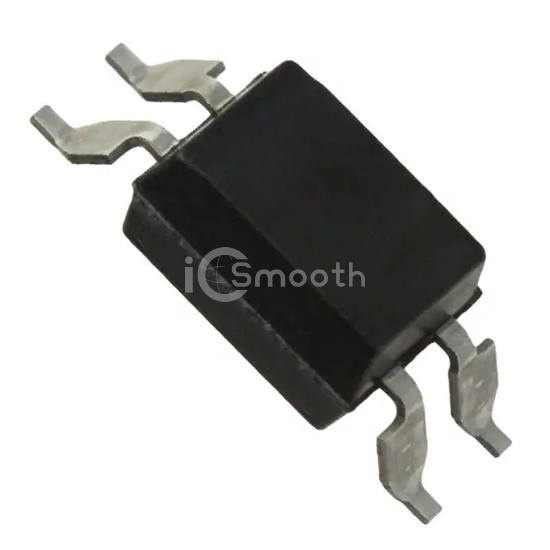

OPTOISOLATR 5KV TRANSISTOR 4-SMD

PS2561AL2-1-V-F3-L-A is a Optoisolators - Transistor, Photovoltaic Output manufactured by CEL. OPTOISOLATR 5KV TRANSISTOR 4-SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 6,452

Tiered Pricing USD

2,000+ $0.1818 —

6,000+ $0.1697 -7%

10,000+ $0.1636 -10%

50,000+ $0.1545 -15% BEST

Specifications

18 parameters

Product Status	Discontinued at Digi-Key
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	50% @ 5mA
Current Transfer Ratio (Max)	400% @ 5mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	3µs, 5µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	70V
Current - Output / Channel	30mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	30 mA
Vce Saturation (Max)	300mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SMD
