CG2409M2

In Stock: 2,260

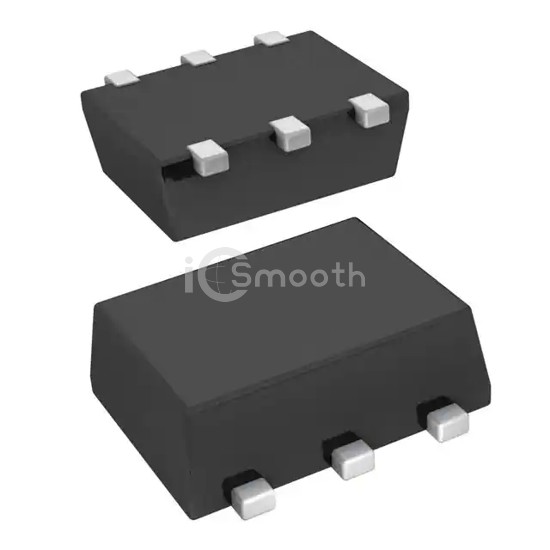

CG2409M2 - CEL - RF Switches
REF: CG2409M2 CEL
CG2409M2

CEL

IC RF SWITCH SPDT 3.8GHZ 6MINIM

CG2409M2 is a RF Switches manufactured by CEL. IC RF SWITCH SPDT 3.8GHZ 6MINIM. Key specifications: operating temperature -45°C ~ 85°C, voltage - supply 1.8V ~ 5V, package / case 6-SMD, frequency range 50MHz ~ 3.8GHz.

Datasheet Request a Quote

In Stock: 2,260

Specifications

16 parameters
Product StatusActive
RF TypeWiMax, WLAN
Topology-
CircuitSPDT
Frequency Range50MHz ~ 3.8GHz
Isolation19dB
Insertion Loss0.6dB
Test Frequency3.8GHz
P1dB-
IIP360dBm
Features-
Impedance50Ohm
Voltage - Supply1.8V ~ 5V
Operating Temperature-45°C ~ 85°C
Package / Case6-SMD
Supplier Device Package6-Minimold
