REG1117-5G4

In Stock: 5,959

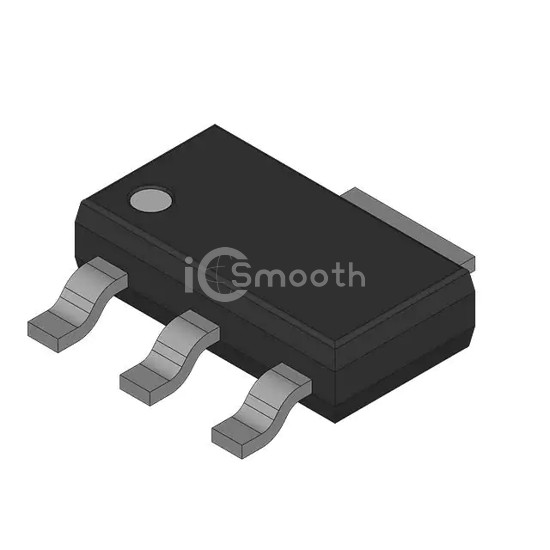

REG1117-5G4 - Burr Brown - PMIC - Voltage Regulators - Linear
REF: REG1117-5G4 Burr Brown
REG1117-5G4

Burr Brown

IC REG LINEAR 5V 800MA SOT223-4

REG1117-5G4 is a PMIC - Voltage Regulators - Linear manufactured by Burr Brown. IC REG LINEAR 5V 800MA SOT223-4. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case TO-261-4, TO-261AA, current - output 800mA.

Datasheet Request a Quote

In Stock: 5,959

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)15V
Voltage - Output (Min/Fixed)5V
Voltage - Output (Max)-
Voltage Dropout (Max)1.2V @ 800mA
Current - Output800mA
Current - Quiescent (Iq)10 mA
Current - Supply (Max)-
PSRR62dB (120Hz)
Control Features-
Protection FeaturesOver Current, Over Temperature
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / CaseTO-261-4, TO-261AA
Supplier Device PackageSOT-223-4
