OPA501AM

In Stock: 1,315

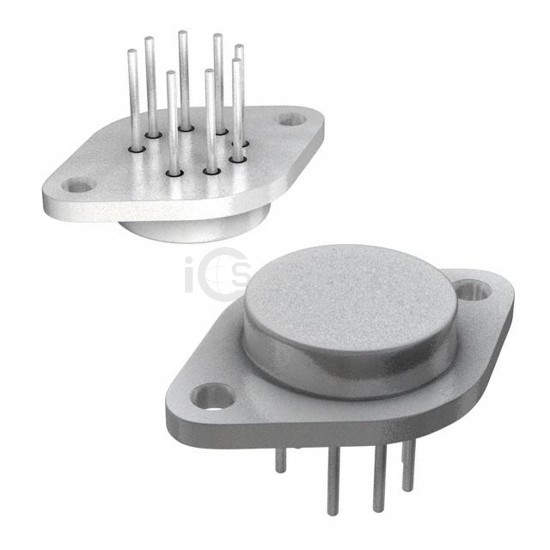

OPA501AM - Burr Brown - Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
REF: OPA501AM Burr Brown
OPA501AM

Burr Brown

IC POWER 1 CIRCUIT TO3-8

OPA501AM is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Burr Brown. IC POWER 1 CIRCUIT TO3-8. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, package / case TO-3-8, current - supply 2.6mA.

Datasheet Request a Quote

In Stock: 1,315

Specifications

17 parameters
Product StatusObsolete
Amplifier TypePower
Number of Circuits1
Output Type-
Slew Rate1.35V/µs
Gain Bandwidth Product1 MHz
-3db Bandwidth-
Current - Input Bias15 nA
Voltage - Input Offset5 mV
Current - Supply2.6mA
Current - Output / Channel10 A
Voltage - Supply Span (Min)20 V
Voltage - Supply Span (Max)72 V
Operating Temperature-25°C ~ 85°C
Mounting TypeThrough Hole
Package / CaseTO-3-8
Supplier Device PackageTO-3-8
