DAC813AU/1K

In Stock: 4,306

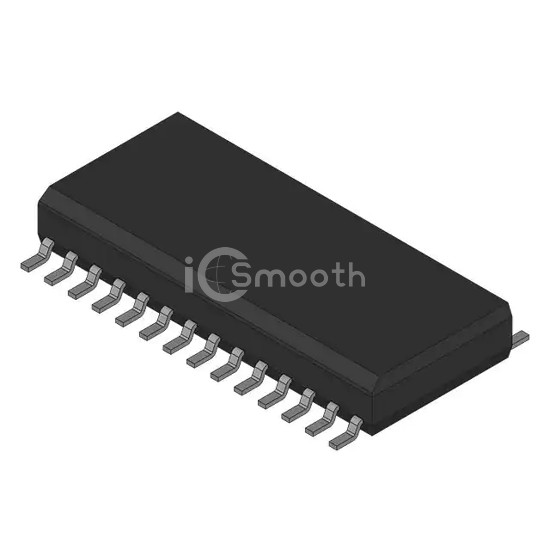

DAC813AU/1K - Burr Brown - Data Acquisition - Digital to Analog Converters (DAC)
REF: DAC813AU/1K Burr Brown
DAC813AU/1K

Burr Brown

DAC, 1 FUNC, PARALLEL, WORD INPU

DAC813AU/1K is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Burr Brown. DAC, 1 FUNC, PARALLEL, WORD INPU. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital ±11.4V ~ 16.5V, package / case 28-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 4,306

Specifications

16 parameters
Product StatusActive
Number of Bits12
Number of D/A Converters1
Settling Time6µs
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceParallel
Reference TypeExternal, Internal
Voltage - Supply, Analog±11.4V ~ 16.5V
Voltage - Supply, Digital±11.4V ~ 16.5V
INL/DNL (LSB)±0.25, ±0.5
ArchitectureR-2R
Operating Temperature-40°C ~ 85°C
Package / Case28-SOIC (0.295", 7.50mm Width)
Supplier Device Package28-SOIC
Mounting TypeSurface Mount
